HDE-1A
Heavy Duty station

DISCONTINUED

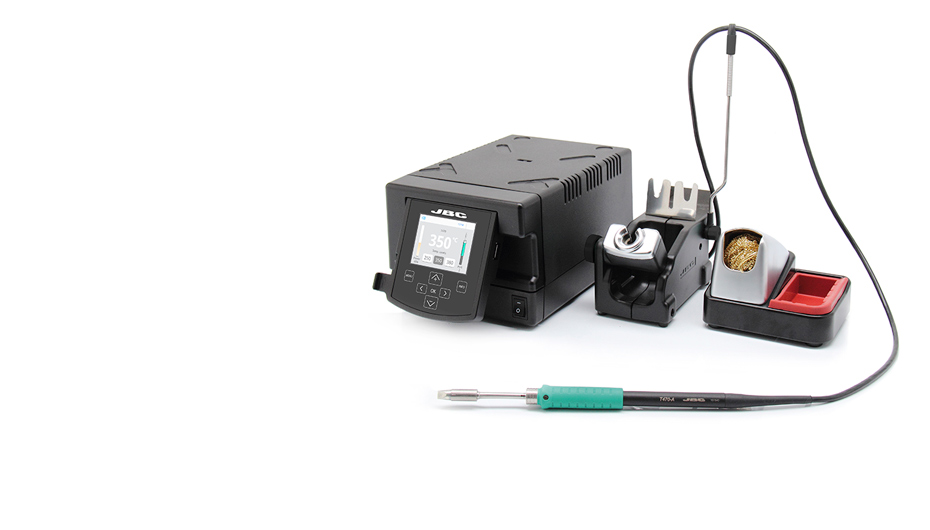

HDE-1A - Heavy Duty station
This is the ideal solution for high thermal demand or prolonged soldering applications such as the production of solar panels, multi-layered circuits and components of large dissipation surfaces.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits. The
easy-to-use menu offers innovative functions to help you monitor the work in real time such as graphics or partial counters.

This station works with the comfortable T470 handpiece and C470 cartridges.

No cartridge supplied with this station.
Net Weight5.9 kg (13.1 lb)
Dimensions145 x 120 x 225 mm
Voltage(AC)120V
Input fuse4A
Output peak power250W
Temperature selection90-500 ºC (190-932 ºF)
Idle temp. stability (still air)±1.5 ºC (±3 ºF)
Tip to ground resistance<2 ohms
Tip to ground voltage<2 mV RMS
Ambient operating temp.10-40 ºC (50-104 ºF)
Communication connectorsUSB-A / USB-B / Peripherals
Robot connectorRJ12 for RS-232 protocol
ESD safe
Package weight6.8 kg (15 lb)
Package dimensions370 x 370 x 200 mm
