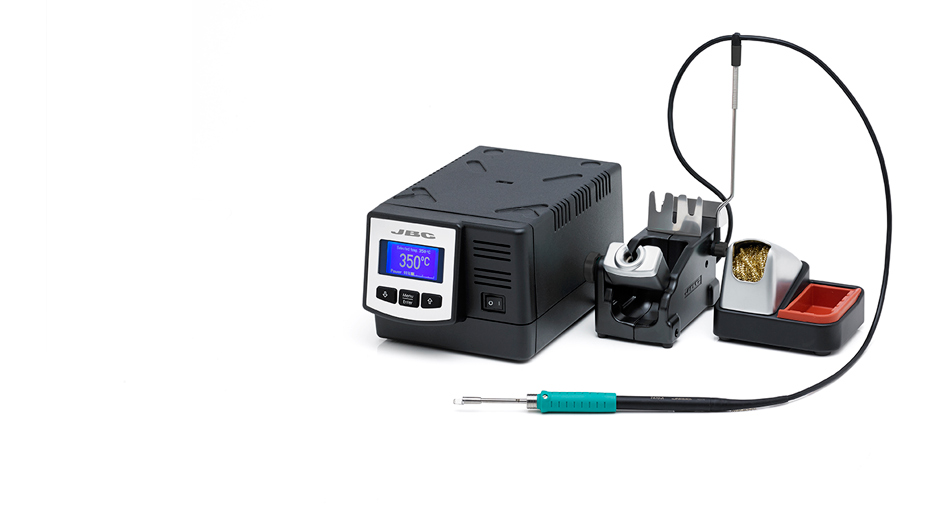

HD-9B
Heavy Duty station

DISCONTINUED
HD is the ideal solution for high thermal demand or prolonged soldering applications such as the production of solar panels, multi-layered circuits and components of large dissipation surfaces.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It incorporates a USB connector (type B) to update station software and create graphs.

HD station works with the comfortable T470 handpiece and C470 cartridges.

This station is supplied without any cartridge
HD-9B
1
HD CONTROL UNIT Heavy Duty
Net Weight5.9 kg (13.1 lb)
Size145 x 120 x 225 mm
Voltage(AC)100V
Input Fuse4A
Output Peak Power250W / 47V
Temperature selection90-500 ºC / 190-932 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Package weight6.8 kg (15 lb)
Package dimensions370x370x200 mm
