Fume Extractor
Ref.
FAE2-5A

FAE2-5A - Fume Extractor

The FAE is the most efficient solution to avoid exposure to solder fumes. It optimizes fume extraction operating only when needed.

The extractor starts up only when soldering. This function saves power and the life of the equipment as well as the filter.

Thanks to a vacuum system integrated into the stand, the system also detects when the tool is at rest and automatically absorbs the fumes.

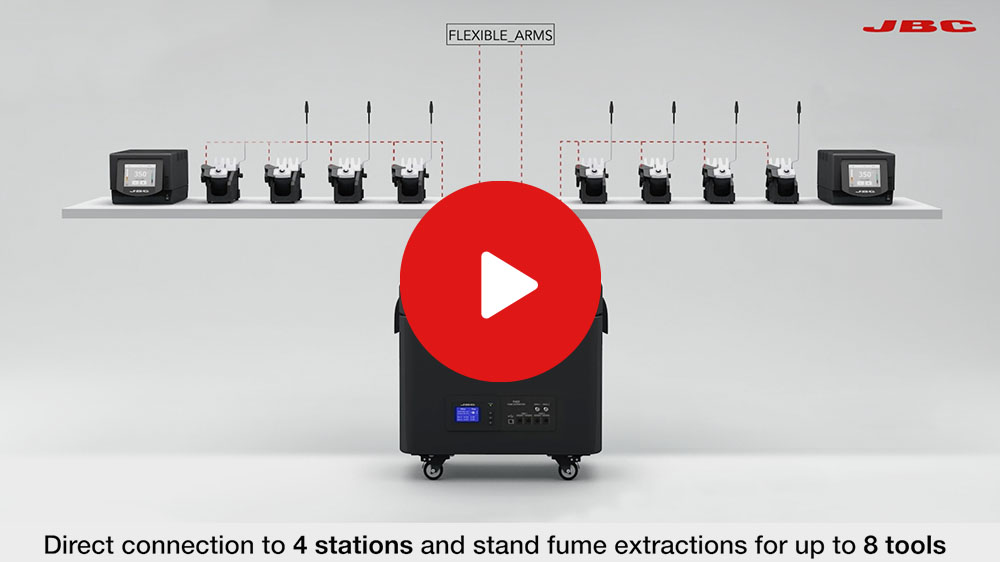

It can be used simultaneously in two work areas and has 4 working modes depending on requirements. It can be controlled via JBC stations, a pedal, a robotic system or a PC.

It has 3 predefined levels of aspiration: low, medium and high, and a custom mode with which you can set the airflow within the low (10%) and max rates (100%).

Example of a configuration for Excellece stations featuring RJ12 connector (DDE/DME/HDE)

*FAE010 - ø50 Flexible Hose (x2)
*FAE020 or FAE070 - ø50 Flexible Arm (x1)
*FAE030 or FAE040 - Accesory for stand aspiration (x1)
*FAE050 - Fume inlet duct
*These items are not included

In order to control the Fume Extractor activation from multiple stations at the same time, or from stations featuring only USB port,
QSC-A device is required.
Product Composition
Fume Extractor:
Specifications
Net Weight33,60 kg (74.08lb)
Dimensions558 x 292 x 562 mm
(21.97 x 11.50 x 22.13 in)
Voltage100-240V - 50/60 Hz
Power supply400 W (120 - 230 V)
320 W (100V)
Fuse8 AT
Blower typeBrushless
Max. Flow rate290 m3 / h (170.7 CFM)
Max. Vacuum6,1 KPa (0.88 psi)
Work areas2
Noise54 dB
Pre-filterMedium dust filter M5 (EN 779)
Compact filtersH13 particle filter (EN 1822)
Activated carbon filter
ESD Safe
Package weight36,00 kg (79.37lb)
Package dimensions615 x 368 x 637 mm
(24.21 x 14.49 x 25.08 in)
Weight33.600 kg (74.07 lb)
Documentation

VideoTutorial:

Manuals:
FAE2-5A Manual(1.58 Mb)
