DMPVE
4 Tools Rework Station with Pneumatic Pump

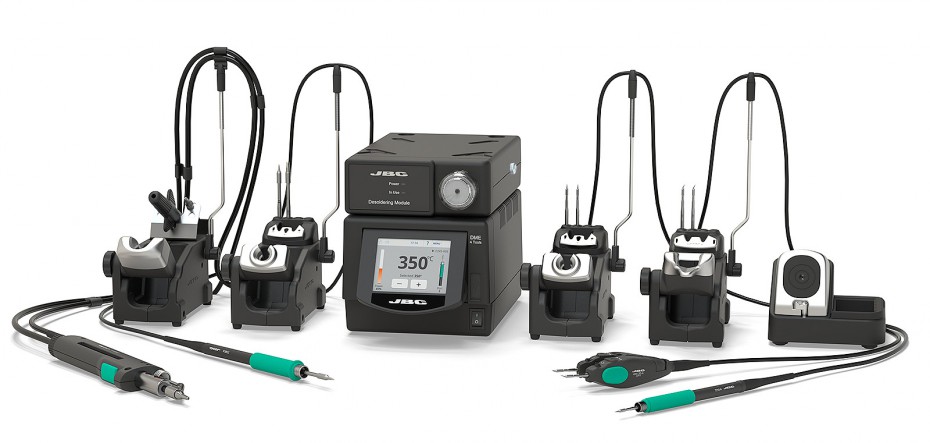

DMPVE - 4 Tools Rework Station with Pneumatic Pump
The DME manages up to 4 tools simultaneously and is fully compatible with 10 different JBC tools. Check below the complete list of compatible tools.

The MVE Pneumatic Desoldering Module is indispensable for a complete desoldering process. Clean and dry compressed air is required.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.

Although the Control Unit is compatible with 10 different JBC tools, the DMPSE works simultaneously with the T210 Precision Purpose Handle, the T245 General Purpose Handle, the AM120 Micro Tweezers and the DR560 Desoldering Iron.
Net weight
9,55 kg (21.05lb)
Dimensions
148 x 120 x 232 mm
(5.83 x 4.72 x 9.13 in)
Voltage
120V / 230V / 100V
Input fuse
6A / 3.15A / 8A
Output peak power
160W per tool
Temperature selection
90-450 ºC (190-840 ºF)
Idle temp. stability (still air)
±1.5 ºC (±3 ºF)
Tip to ground resistance
<2 ohms
Tip to ground voltage
<2 mV RMS
Ambient operating temp.
10-40 ºC (50-104 ºF)
Communication connectors
USB-A / USB-B / Peripherals
Robot connector
RJ12
PS connector
RJ12
LAN
RJ45
ESD safe
Package weight
10,62 kg (23.40lb)
Package dimensions
474 x 368 x 195 mm
(18.66 x 14.49 x 7.68 in)
