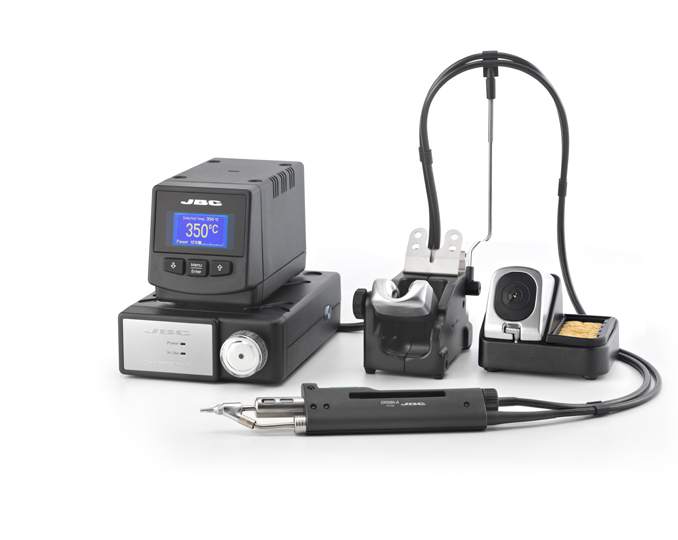

DIV-9DDesoldering station with pneumatic suction module

DIV-9D
Desoldering station with pneumatic suction module

DISCONTINUED
This station allows you to desolder insertion components and to clean circuits with SMD.

The MV suction module offers the best results using a Venturi valve. This system requires available compressed air at the operator´s bench.

It works with the JBC JBC Most Efficient Soldering System and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The USB connector allows to update software, create graphs and manage parameters from a PC.

This station works with the comfortable DR560 Desoldering Iron and C560 tips.
If you require any further information, feel free to contact us
Net Weight5,72 kg (12.61lb)
SizeSee individual modules
Voltage(AC)100V
Input Fuse2.5A
Output Peak Power130W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Air pressure3 - 6 Bar
Vacuum90% / 680mmHg / 26.8inHg
Flow rate15 SLPM
Package weight6,59 kg (14.53lb)
Package dimensions368 x 368 x 195 mm
(14.49 x 14.49 x 7.68 in)
DIV-9D - Desoldering station with pneumatic suction module
