DIV-9BDesoldering station with pneumatic suction module

DIV-9B
Desoldering station with pneumatic suction module

DISCONTINUED

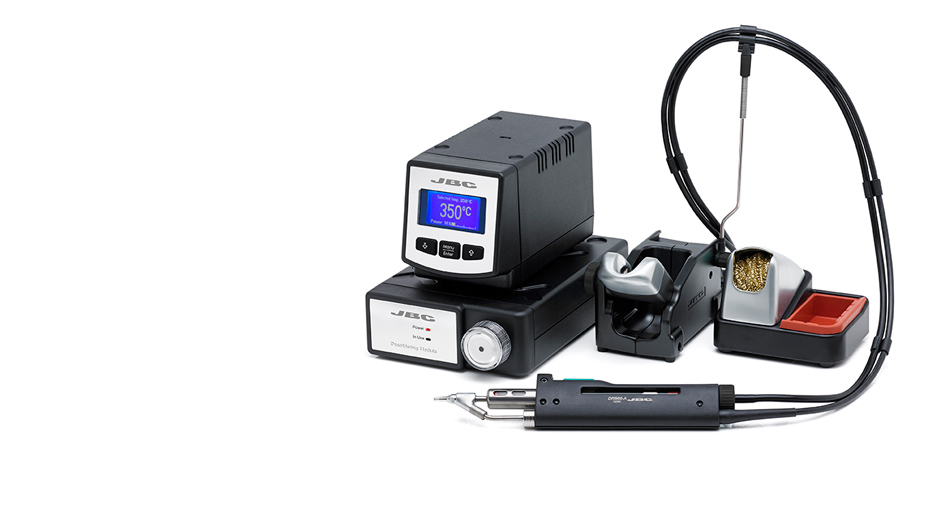

DIV-9B - Desoldering station with pneumatic suction module
DIV station is designed for desoldering insertion components and for cleaning circuits with SMD components.

The MV suction module offers the best result using a Venturi valve. This system requires available compressed air at the operator´s bench.

It incorporates the JBC exclusive heating system, even The intelligent sleep and the hibernation feature.

Through the menu you can customize more than 20 functionalities.

Although DI suits any of JBC tools, DIV station works with DR560 desoldering iron.

Net weight
5.4 kg (11.9 lb)
Size
See individual modules
0.00 in
Voltage
100V
Input fuse
2.5A
Output peak power
130W / 23.5V
Temperature selection
90-450 ºC / 190-840 ºF
Tip to ground resistance
<2 ohms
Tip to ground voltage
<2mV RMS
Ambient operating temp.
10-40 ºC / 50-104 ºF
ESD safe
USB interface station-PC
Air pressure
3 - 6 Bar
Vacuum
90% / 680mmHg / 26.8inHg
Flow rate
15 SLPM
Package weight
6.300 kg (13.89 lb)
Package dimensions
370x370x200 mm
1.46 x 1.46 x 7.87 in
