DIS-9DDesoldering station with electric suction module

DIS-9D
Desoldering station with electric suction module

DISCONTINUED

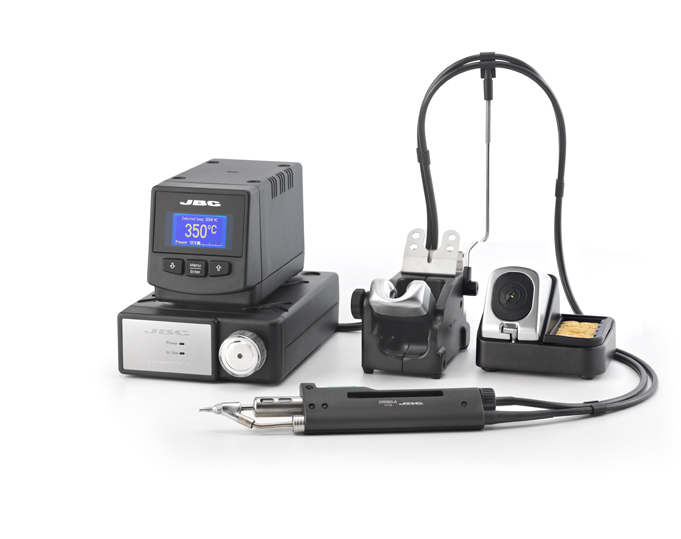

DIS-9D - Desoldering station with electric suction module
This station allows you to desolder insertion components and to clean circuits with SMD.

It includes a DI Control Unit and a MS Electric Suction Module which guarantees a quick & safe desoldering process.

It works with the JBC JBC Most Efficient Soldering System and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The USB connector allows to update software, create graphs and manage parameters from a PC.

This station works with the comfortable DR560 Desoldering Iron and C560 tips.

Net Weight6,12 kg (13.49lb)
SizeSee individual modules
Voltage(AC)100V
Input Fuse2.5A
Output Peak Power130W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Vacuum75% / 570mmHg / 22.4inHg
Flow rate9 SLPM
Package weight7,03 kg (15.49lb)
Package dimensions368 x 368 x 195 mm
(14.49 x 14.49 x 7.68 in)
