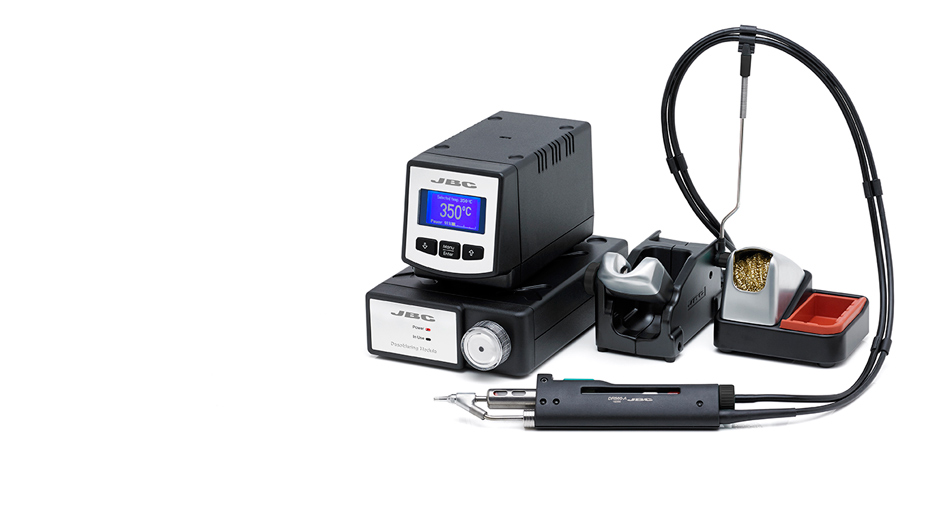

DIS-9BDesoldering station with electric suction module

DIS-9B
Desoldering station with electric suction module

DISCONTINUED
DIS station is designed for desoldering insertion components and for cleaning circuits with SMD components.

It is provided by a DI control unit and a MS electric suction module that creates a vacuum peak at the startup.

It incorporates the JBC exclusive heating system, even the intelligent sleep and the hibernation feature.

Through the menu you can customize more than 20 functionalities.

Although DI is able to work with any of JBC tools, DIS station works with DR560 desoldering iron.
If you require any further information, feel free to contact us
Net weight
5.9 kg (13 lb)
Size
See individual modules
0.00 in
Voltage
100V
Input fuse
2.5A
Output peak power
130W / 23.5V
Temperature selection
90-450 ºC / 190-840 ºF
Tip to ground resistance
<2 ohms
Tip to ground voltage
<2mV RMS
Operating temp. range
10-40 ºC / 50-104 ºF
ESD safe
USB interface station-PC
Vacuum
75% / 570mmHg / 22.4inHg
Flow rate
9 SLPM
Package weight
6.700 kg (14.77 lb)
Package dimensions
370x370x200 mm
1.46 x 1.46 x 7.87 in
DIS-9B - Desoldering station with electric suction module
