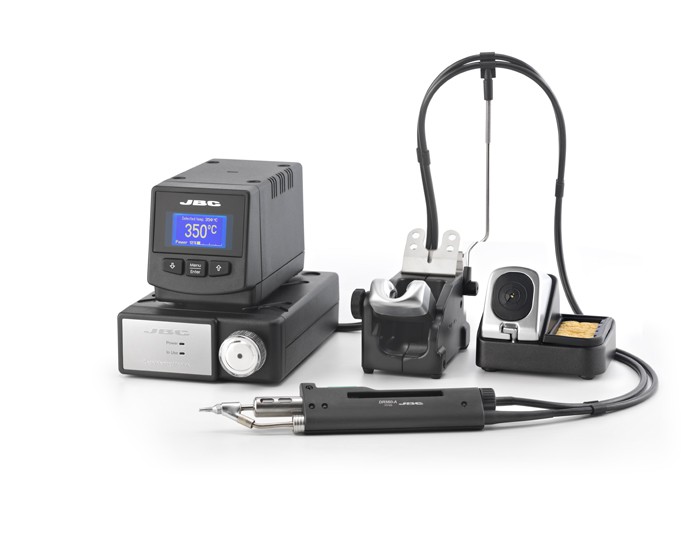

DIS-2DDesoldering station with electric suction module

DIS-2D
Desoldering station with electric suction module

DISCONTINUED
This station allows you to desolder insertion components and to clean circuits with SMD.

It includes a DI Control Unit and a MS Electric Suction Module which guarantees a quick & safe desoldering process.

It works with the JBC JBC Most Efficient Soldering System and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The USB connector allows to update software, create graphs and manage parameters from a PC.

This station works with the comfortable DR560 Desoldering Iron and C560 tips.

If you require any further information, feel free to contact us
Net Weight6,12 kg (13.49lb)
SizeSee individual modules
Voltage(AC)230V
Input Fuse1A
Output Peak Power130W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Vacuum75% / 570mmHg / 22.4inHg
Flow rate9 SLPM
Package weight7,03 kg (15.49lb)
Package dimensions368 x 368 x 195 mm
(14.49 x 14.49 x 7.68 in)
DIS-2D - Desoldering station with electric suction module
