DISCONTINUED
DIR

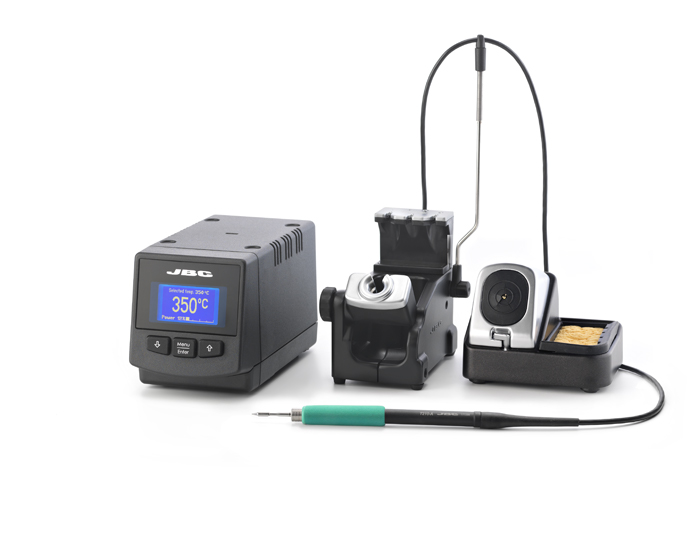

Precision Soldering station
DIR
Precision Soldering station
This station is perfect for industrial precision soldering jobs with medium power requirements.
It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.
Using the menu you can personalize over 20 parameters to help manage the soldering process.
The USB connector allows to update software, create graphs and manage parameters from a PC.
Although the DI control unit is fully compatible
with all JBC tools, the DIR station works
with the lightest and ergonomic
T210-A handpiece and C210 cartridges.
It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.
Using the menu you can personalize over 20 parameters to help manage the soldering process.
The USB connector allows to update software, create graphs and manage parameters from a PC.
Although the DI control unit is fully compatible
with all JBC tools, the DIR station works
with the lightest and ergonomic
T210-A handpiece and C210 cartridges.
Premium line
Product Composition
Control Unit:
Stands:
Cartridges:
Cleaning Systems:
Specifications
| Net Weight | 4,21 kg (9.29lb) |
| Size | See individual modules |
| Voltage(AC) | 230V / 120V / 100V |
| Input Fuse | 1A (230V), 2A (120V), 2.5A (100V) |
| Output Peak Power | 40W / 23.5V |
| Temperature selection | 90-450 ºC / 190-840 ºF |
| Tip to ground resistance | <2 ohms |
| Tip to ground voltage | <2mV RMS |
| Ambient operating temp. | 10-40 ºC / 50-104 ºF |
| ESD Safe | |
| USB interface station-PC | |
| Package weight | 5,38 kg (11.86lb) |
| Package dimensions | 368 x 368 x 195 mm |
Documentation
DI-D Manual(1.63 Mb)
Stands Manual(2.23 Mb)
Soldering Iron Handles Manual(2.88 Mb)
CL8499 ESD Tip Cleaner Manual(1.2 Mb)
Consumables
Compatible moduls
Connectable tools
Accessories
