DISCONTINUED

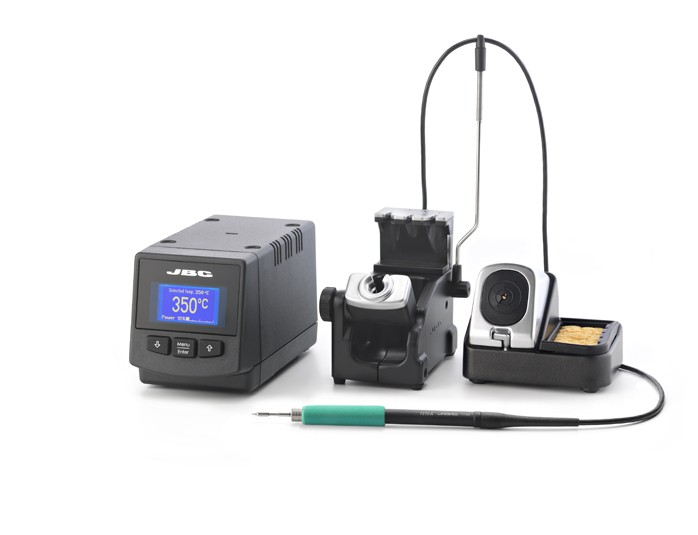

100 V - Precision soldering station
Ref.
DIR-9D
100 V - Precision soldering station
Ref.
DIR-9D
This station is perfect for industrial precision soldering jobs with medium power requirements.
It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.
Using the menu you can personalize over 20 parameters to help manage the soldering process.
The USB connector allows to update software, create graphs and manage parameters from a PC.
Although the DI control unit is fully compatible
with all JBC tools, the DIR station works
with the lightest and ergonomic
T210-A handpiece and C210 cartridges.
It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.
Using the menu you can personalize over 20 parameters to help manage the soldering process.
The USB connector allows to update software, create graphs and manage parameters from a PC.
Although the DI control unit is fully compatible
with all JBC tools, the DIR station works
with the lightest and ergonomic
T210-A handpiece and C210 cartridges.
Product Composition
Control Unit:
Stands:
Cartridges:
Cleaning Systems:
Specifications
| Net Weight | 4,21 kg (9.29lb) |
| Size | See individual modules |
| Voltage(AC) | 100V |
| Input Fuse | 2.5A |
| Output Peak Power | 40W / 23.5V |
| Temperature selection | 90-450 ºC / 190-840 ºF |
| Tip to ground resistance | <2 ohms |
| Tip to ground voltage | <2mV RMS |
| Ambient operating temp. | 10-40 ºC / 50-104 ºF |
| ESD Safe | |
| USB interface station-PC | |
| Package weight | 5,38 kg (11.86lb) |
| Package dimensions | 368 x 368 x 195 mm |
| (14.49 x 14.49 x 7.68 in) |
Documentation
DI-D Manual(1.63 Mb)
Stands Manual(2.23 Mb)
Soldering Iron Handles Manual(2.88 Mb)
CL8499 ESD Tip Cleaner Manual(1.2 Mb)
Consumables
Compatible moduls
Connectable tools
Accessories
