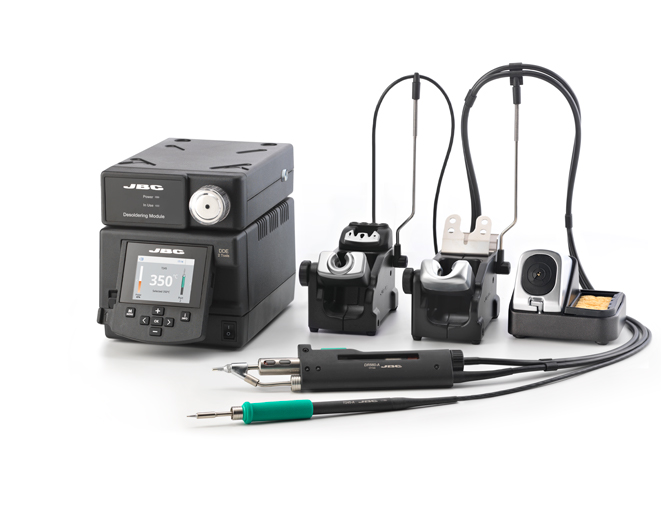

DDVE-9B
2 Tools Rework Station with Pneumatic Pump

DISCONTINUED
A complete solution for fast and safe PCB repair.

The DDE 2 Tools Control Unit manages the tip temperature and the MVE Pneumatic Desoldering Module sucks the solder. Clean and dry compressed air is required.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.

Although the unit is compatible with any JBC tool, the DDVE works simultaneously with the DR560 Desoldering Iron and the T245 Handle.
Selectable parameters
Selectable Temperature
90 to 450 ºC / 190 to 840 ºF
Special features
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max. and min. temperature
Limit the temperature range in which the operator is allowed to work.
Temperatue levels
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
Soldering graphics
Real time visualization of tip temperature and power delivered to the solder joint during soldering process.
PIN protection
Keep station parameters protected against unauthorized access.
Others
Vacuum
90% / 680 mmHg / 26.8 inHg
Flow rate
15 SLPM
Air pressure supply
up to 6 bar
Connectivity
USB-B (rear)
Software PC / Traceability
USB-A (front)
Firmware update Soldering Graphics management
Robot
RS-232 remote control or Smart Fume Extractor connection.
Equipotential bonding

ESD/EOS
ESD safe
Tip to ground resistance
<2 ohms
Tip to ground voltage
<2 mV RMS

Power supply
Peak power
150 W per tool – 23.5 V
Operating temp. range
10 to 40 ºC / 50 to 104 ºF
Dimensions and weight
Control Unit
See individual modules
Package
368 x 474 x 195 mm / 9.85 kg
14.5 x 18.7 x 7.7 in / 21.72 lb
8.348 kg (18.40 lb)
9.854 kg (21.72 lb)
474 x 368 x 195 mm
