DDST-1BRework station with Electric Pump

DDST-1B
Rework station with Electric Pump

DISCONTINUED

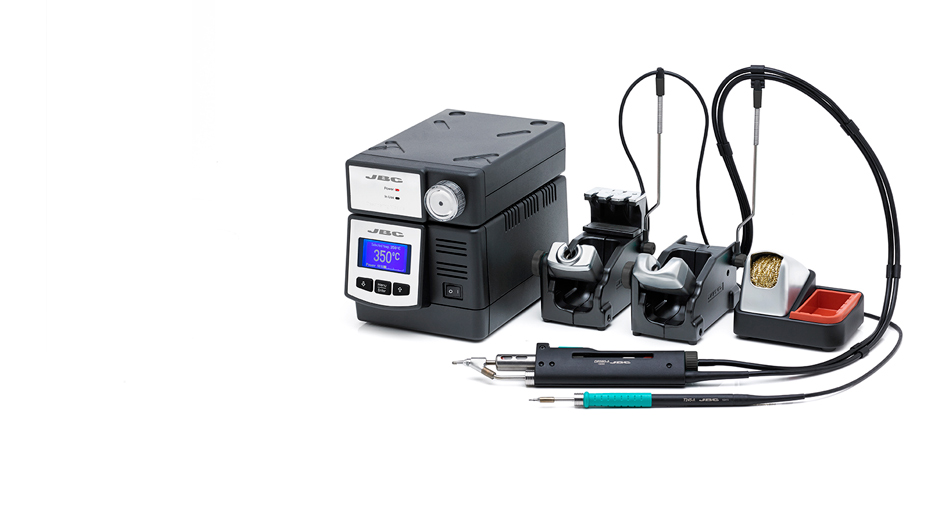

DDST-1B - Rework station with Electric Pump
The DDST station is a complete solution to repair and rework electronic circuits fast and safe.

The DD 2 tools control unit manages the tip temperature and the MS electric suction module sucks the solder.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the process.

Although other JBC tools suit the unit, the DDST station works simultaneously with the DR560 desoldering iron and the T245 handpiece.

Net Weight9.1 kg (20 lb)
SizeSee individual modules
Voltage(AC)120V
Input Fuse4A
Output Peak Power150W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Vacuum75% / 570mmHg / 22.4inHg
Flow rate9 SLPM
Package weight10.2 kg (22.4 lb)
Package dimensions475x370x195 mm
