DDSE-1B
2 Tools Rework Station with Electric Pump

DISCONTINUED

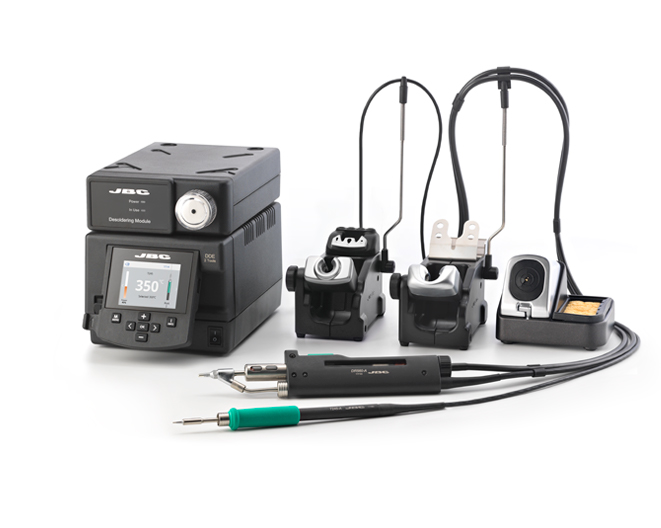

DDSE-1B - 2 Tools Rework Station with Electric Pump
A complete solution for fast and safe PCB repair.

The DDE 2 Tools Control Unit manages the tip temperature and the MSE Electric Desoldering Module sucks the solder.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.

Although the unit is compatible with any JBC tool, the DDSE works simultaneously with the DR560 Desoldering Iron and the T245 Handle.
Selectable parameters
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Special features
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max. and min. temperature
Limit the temperature range in which the operator is allowed to work.
Temperatue levels
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
Soldering graphics
Real time visualization of tip temperature and power delivered to the solder joint during soldering process.
PIN protection
Keep station parameters protected against unauthorized access.
Others
Vacuum
75% / 570 mmHg / 22.4 inHg
Flow rate
9 SLPM
Connectivity
USB-B
Software PC / Traceability
USB-A
Firmware update Soldering Graphics management
Robot
RS-232 remote control or Smart Fume Extractor connection.
Equipotential bonding

ESD/EOS
ESD safe
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS

Power supply
Peak power
150 W per tool – 23.5 V
Operating temp. range
10 to 40 ºC / 50 to 104 ºF
Weight and dimensions
Control Unit
See individual modules
Package
368 x 474 x 195 mm / 10.39 kg
14.5 x 18.7 x 7.7 in / 22.91 lb
9.253 kg (20.40 lb)
10.393 kg (22.91 lb)
474 x 368 x 195 mm
