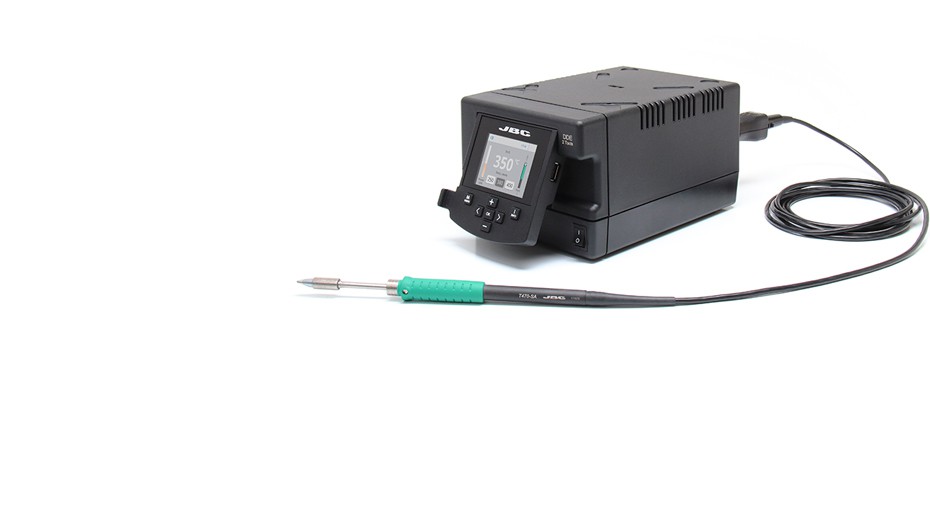

DDE-B Robot Station

DDRE-9B - DDE-B Robot Station
The ideal solution for repetitive jobs with robot.

It includes the DDE 2 Tools Contol Unit which communicates with the robot through the RJ12
connector and in accordance with this Protocol.

It also features the JBC exclusive heating system and the Excellence range benefits.

The converter guarantees the sleep & hibernation modes without using a stand.

The T470-SA Handle suits perfectly any robotic system thanks to its 3m cable and the screw
which prevents movement of the cartridge.

Cartridge not included.
Net Weight3,99 kg (8.80lb)
Dimensions148 x 120 x 232 mm
(5.83 x 4.72 x 9.13 in)
Input fuse5A
Output peak power150W per tool
Temperature selection90-450 ºC (190-840 ºF)
Idle temp. stability (still air)±1.5 ºC (±3 ºF)
Tip to ground resistance<2 ohms
Tip to ground voltage<2 mV RMS
Ambient operating temp.10-40 ºC (50-104 ºF)
Communication connectorsUSB-A / USB-B / Peripherals
Robot connectorRJ12 for RS-232 protocol
ESD safe
Package weight4,37 kg (9.64lb)
Package dimensions258 x 328 x 208 mm
(10.16 x 12.91 x 8.19 in)

DDRE-B Manual(2.81 Mb)
DDE-B Manual(3.11 Mb)
CHB-A Manual(379 Kb)


Exploded View:
Exploded View(439 Kb)
Cartridges Range
Connectable tools
