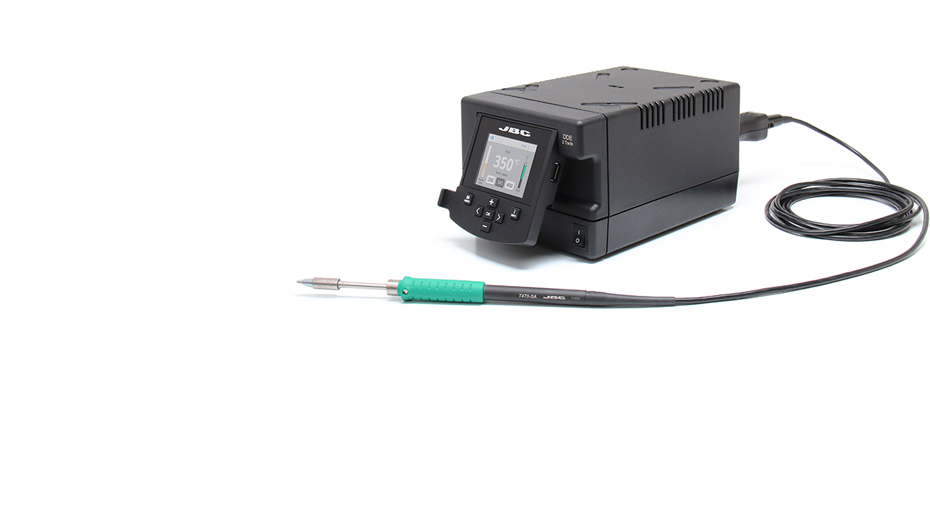

DDRE-1B
DDE-B Robot Station

DISCONTINUED
The ideal solution for repetitive jobs with robot.

It includes the DDE 2 Tools Contol Unit which communicates with the robot through the RJ12 connector and in accordance with this Protocol.

It also features the JBC exclusive heating system and the Excellence range benefits.

The converter guarantees the sleep & hibernation modes without using a stand.

The T470-SA Handle suits perfectly any robotic system thanks to its 3m cable and the screw which prevents movement of the cartridge.

Cartridge not included.
Net weight
3,99 kg (8.80lb)
Dimensions
148 x 120 x 232 mm
5.83 x 4.72 x 9.13 in
Voltage
120V
Input fuse
4A
Output peak power
150W per tool
Temperature selection
90-450 ºC (190-840 ºF)
Idle temp. stability (still air)
±1.5 ºC (±3 ºF)
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS
Operating temp. range
10-40 ºC (50-104 ºF)
Communication connectors
USB-A / USB-B / Peripherals
Robot connector
RJ12 for RS-232 protocol
ESD safe
Package weight
4.373 kg (9.64 lb)
Package dimensions
258 x 328 x 208 mm
10.16 x 12.91 x 8.19 in
3.991 kg (8.80 lb)
