CF-9CSolder Feed station
CF-9C - Solder Feed station

CF-9C
Solder Feed station

DISCONTINUED
CF-9C - Solder Feed station

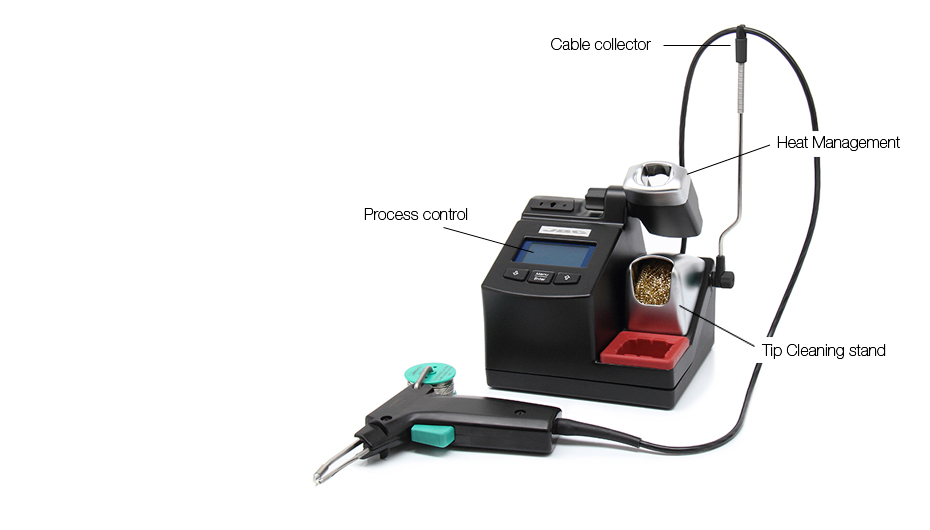

The CF is a soldering station for intensive jobs which allows you to work with one hand.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It incorporates a USB connector (type B) to update station software and create graphs.

CF works with the comfortable AP130 solder feed iron and C130 cartridges.
Don’t believe us...
TRY IT!
REFERENCE
CF-9C
PRODUCT COMPOSITION
SPECIFICATIONS
Net Weight2.8 kg (6.2 lb)
Size150x175x145 mm
Voltage(AC)100V
Input Fuse2A
Output Peak Power130W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Package weight3.3 kg (7.3 lb)
Package dimensions235x235x260 mm
Cartridge Range
