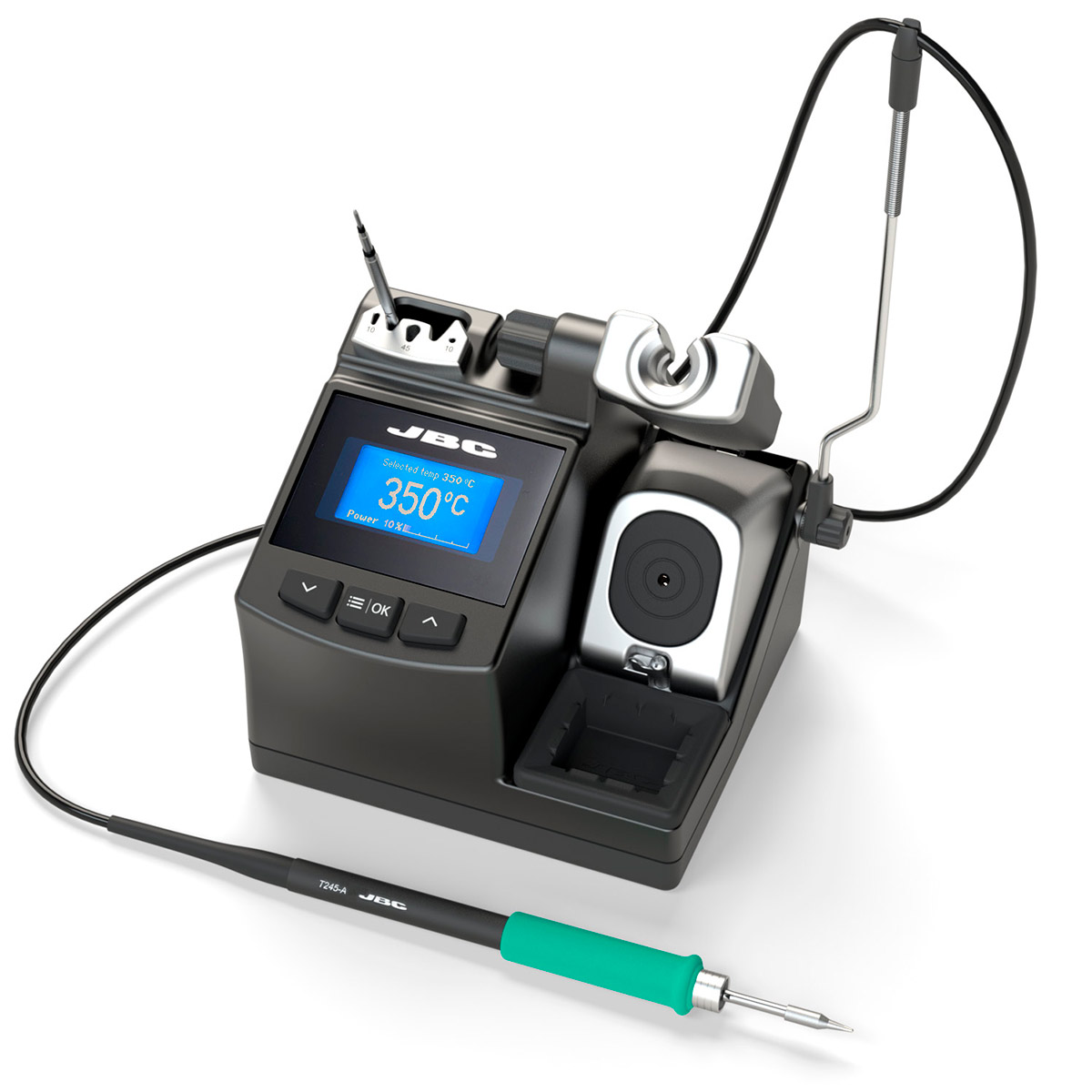

CD-B
Soldering Station for General Purposes

This Station comes with the most versatile T245
Handle and allows soldering from small SMD passives (0201) to large thermal pads (DPAK) as well as THT components. This Handle works with the C245 Cartridges.

It comes with the JBC exclusive Heating System and the intelligent Sleep & Hibernation features.

Using the menu you can personalize over 20 parametes.

It features a USB connector to updat and manage parameters from a PC.

A complete Cleaning System with antisplash membrane and wiper with sponge is integrated.

More than 400 cartridges are available.
Avalaible on the following Refs:
120 V - Ref.

230 V - Ref.

100 V - Ref.

Selectable parameters
Temperature90 to 450 ºC / 190 to 840 ºF

Special Features
Sleep and Hibernation modeThese modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.

Max and Min TemperatureLimit the temperature range in which the operator is allowed to work.

Temperatue levelsInstant selection of up to 3 editable temperature settings for solder joints with different heat requirement.

PIN protectionKeep station parameters protected against unauthorized access.

Connectivity
USB-BSoftware PC / Firmware update
Equipotential bonding

ESD/EOS
ESD Safe
Tip to Ground Resistance<2 ohms
Tip to Ground Voltage<2 mV RMS

Power supply
Peak Power130 W - 23,5 V
Voltage (AC)ref. CD-1BE - 120 V
ref. CD-2BE - 230 V
ref. CD-9BE - 100 V

Ambient Operating Temp.10 to 40 ºC / 50 to 104 ºF

Dimensions and weight
Control Unit150 x 175 x 145 mm / 2,67 kg
5.9 x 6.9 x 5.7 in / 5.88 lb

Package234 x 234 x 258 mm / 3.15 kg
9.2 x 9.2 x 10.2 in / 6.94 lb
