AL-9A - Auto-Feed Soldering Station

AL
Auto-Feed Soldering Station

DISCONTINUED

AL Tutorial

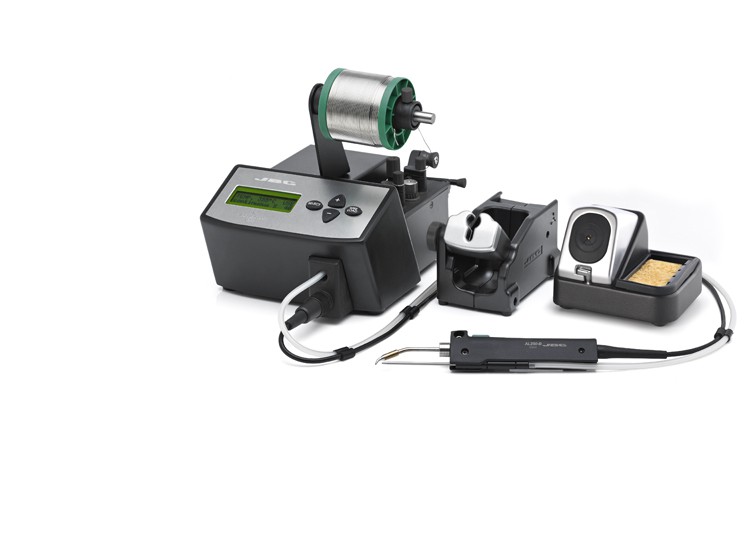

AL-9A - Auto-Feed Soldering Station
This is the ideal solution for extensive soldering applications or when a free hand is required.

The AL station automates the soldering process by feeding solder wire.

It is possible to select continuous or discontinuous operation modes.

It incorporates the JBC exclusive heating system with the intelligent sleep and the hibernation feature.

AL station works with the comfortable AL250 Auto-Feed Iron and C250 cartridges.
Don’t believe us...
TRY IT!
REFERENCE
AL-9A
PRODUCT COMPOSITION
SPECIFICATIONS
Net weight
5,81 kg (12.81lb)
Size
195x200x240 mm
0.75 x 0.79 x 9.45 in
Voltage
230V / 120V / 100V
Input fuse
1A (230V), 2A (120V and 100V)
Output peak power
130W / 23.5V
Temperature selection
90-450 ºC / 190-840 ºF
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2mV RMS
Operating temp. range
10-40 ºC / 50-104 ºF
ESD safe
Solder wire diameter
0.4-1.8 mm / 0.02-0.07 in
Capacity of solder reels
up to 2Kg
Wire length
1-60 mm / 0.04-2.36 in
Speed
30 mm/s (max) / 1.2 in (max)
Package weight
6,72 kg (14.82lb)
Package dimensions
368 x 368 x 195 mm
14.49 x 14.49 x 7.68 in
5.809 kg (12.81 lb)
