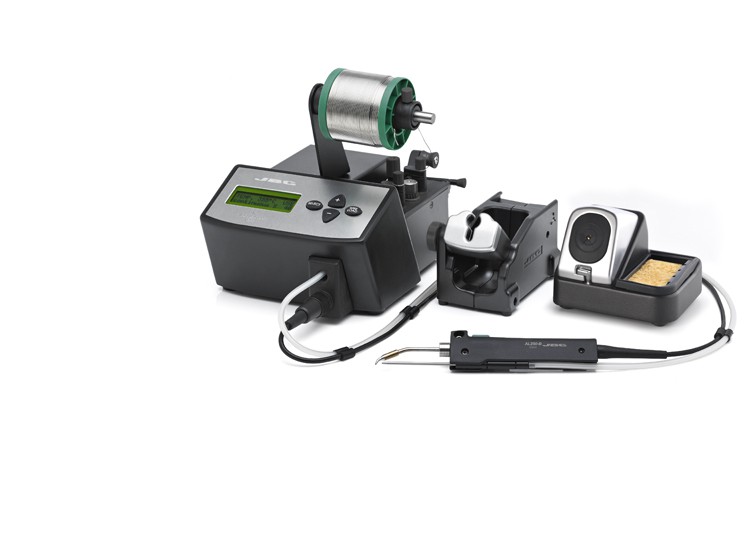

AL - Auto-Feed Soldering Station
AL station works with the comfortable AL250 Auto-Feed Iron and C250 cartridges.

It is the ideal solution for soldering processes requiring a free hand.

With a single press of a button, the tool automatically feeds the precise amount of solder programmed in the station. This feature makes the AL the perfect tool when solder amount consistency is required across repetitive solder joints.

It provides the best soldering quality thanks to JBC Most Efficient Soldering System and additionally Sleep & Hibernation modes help to extend life of tips.

Wire dispensing speed and length are easy programmable.

Available guide sets make this tool compatible with 0.4 to 1.8 mm solder wire.



Selectable parameters
Selectable Temperature
90 to 450 ºC / 190 to 840 ºF
Solder wire length
1 to 60 mm / 0.04 to 2.36 in
Solder wire speed
0.5 to 30 mm/s / 0.02 to 1.2 in/s
Operating modes
Continuous / Discontinuous
Solder compatibility
Wire diameter
0.4 to 1.8 mm / 0.02 to 0.07 in
Special features
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max/Min temperature and
solder wire length/speed:
Limits the ranges of temperature, solder wire feeding length and speed in which the operator is allowed to work.
PIN protection
Keep station parameters protected against unauthorized access.
ESD/EOS
ESD safe
Tip to ground resistance
<2 ohms
Tip to ground voltage
<2 mV RMS
Power supply
Peak power
130 W - 23.5 V
Ambient operating temp.
10 to 40 ºC / 50 to 104 ºF
Dimensions and weight
Control Unit
195 x 200 x 240 mm / 5.81 kg
7.7 x 7.9 x 9.4 in / 12.81 lb
Package
368 x 368 x 195 mm / 6.72 kg
14.5 x 14.5 x 7.7 in / 14.82 lb
