Improve your
soldering quality
in real time

Soldering Assistant helps to improve soldering abilities

The system compares the new solder joints with the prestored soldering reference. The operator receives feedback from the station indicated by a colour with a percentage to qualify the process:

0-60% *

61-100% *

Soldering Assistant makes this station perfect for operators with little experience.

* Percentage is configurable

Monitor

Soldering Assistant allows analyzing manual soldering processes and obtaining a qualification of these by comparing the soldering joints one by one.

Mesures energy in real time

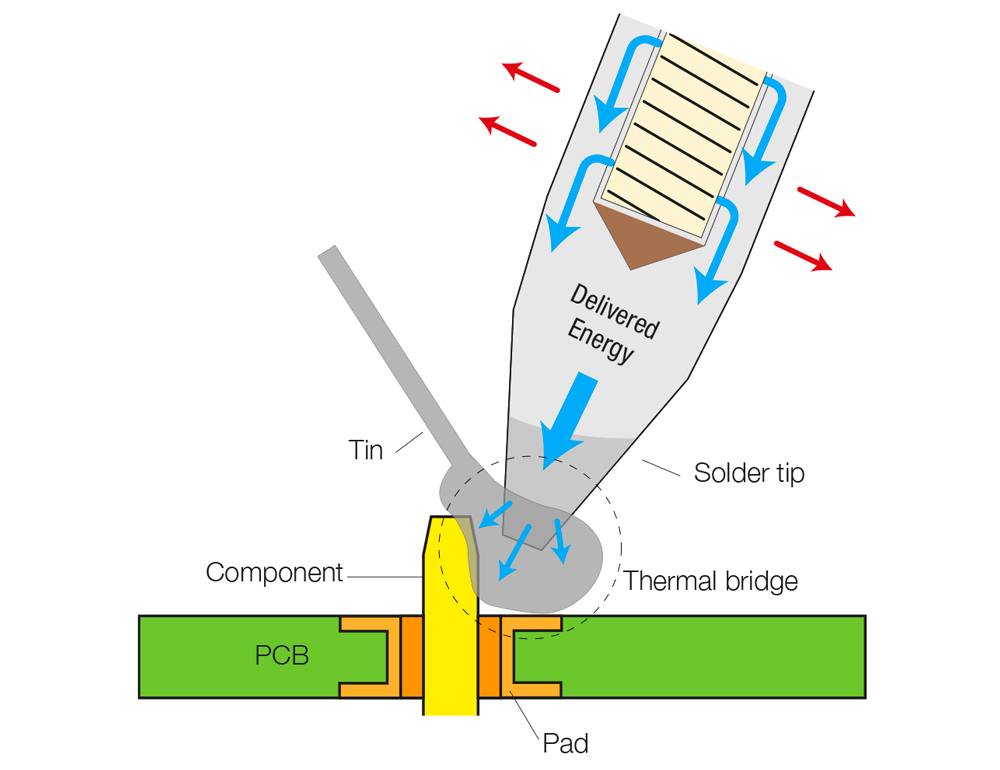

The station identifies when a soldering joint is performed, records the power delivered in each instant and measures the energy supplied.

Energy of the soldering process

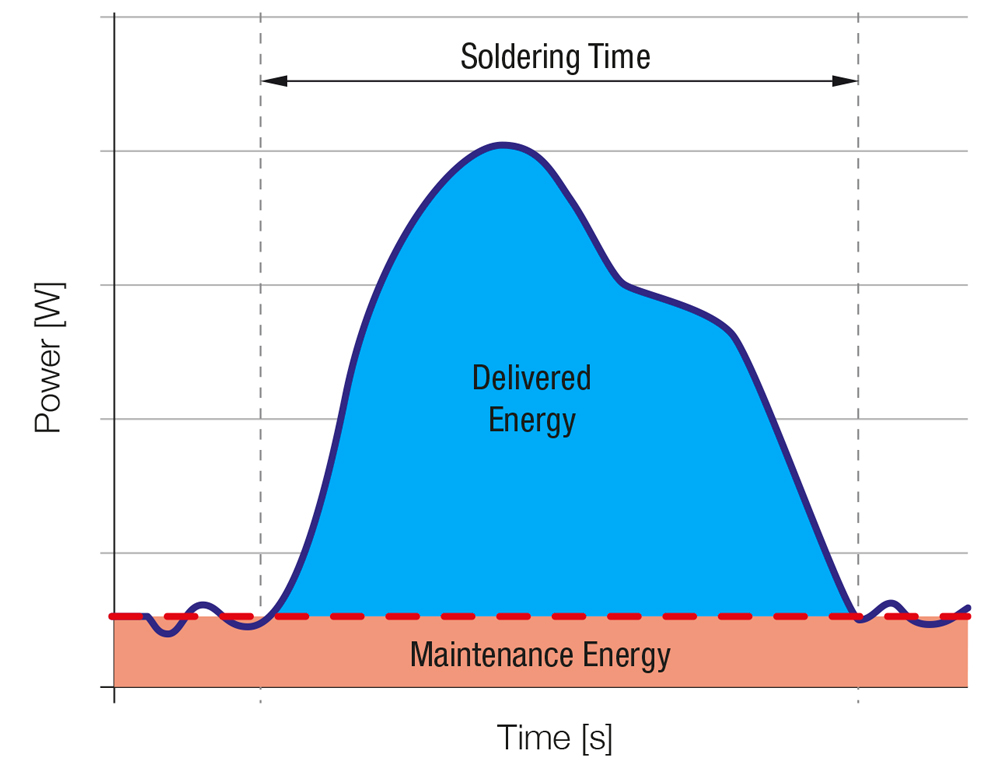

The measurement of the energy delivered by the soldering process and the time needed to do so, is what allows the station to indicate whether two soldering joints are equal or not.

How do we achieve a quality solder joint?

Configuration

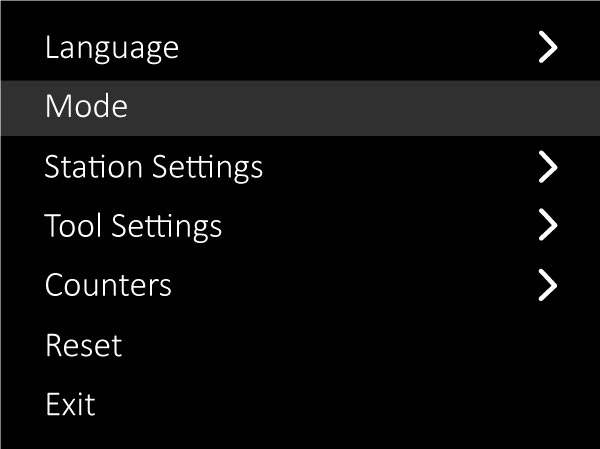

A renewed user menu allows the user to easily set up the station parameters.

Set the proper soldering configuration to obtain the best quality soldering in just a few steps and activate Soldering Assistant.

Choose
cartridge

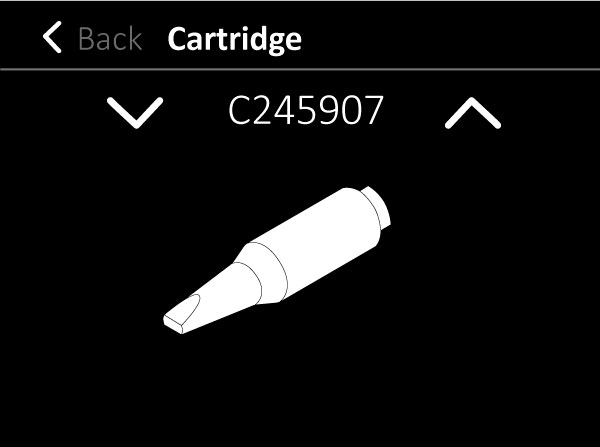

Soldering Assistant compares the power delivery between two equal soldering joints performed with different tip geometries.

This allows the user to select the most optimal cartridge for each soldering process is.

Perform
soldering reference

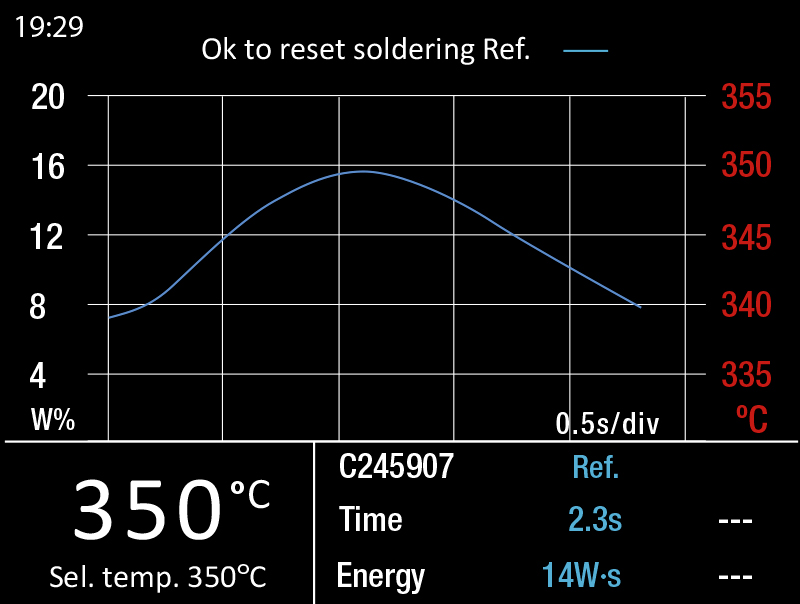

To obtain a high-quality soldering reference, it is recommendable that an expert performs and verifies the soldering process.

Practice

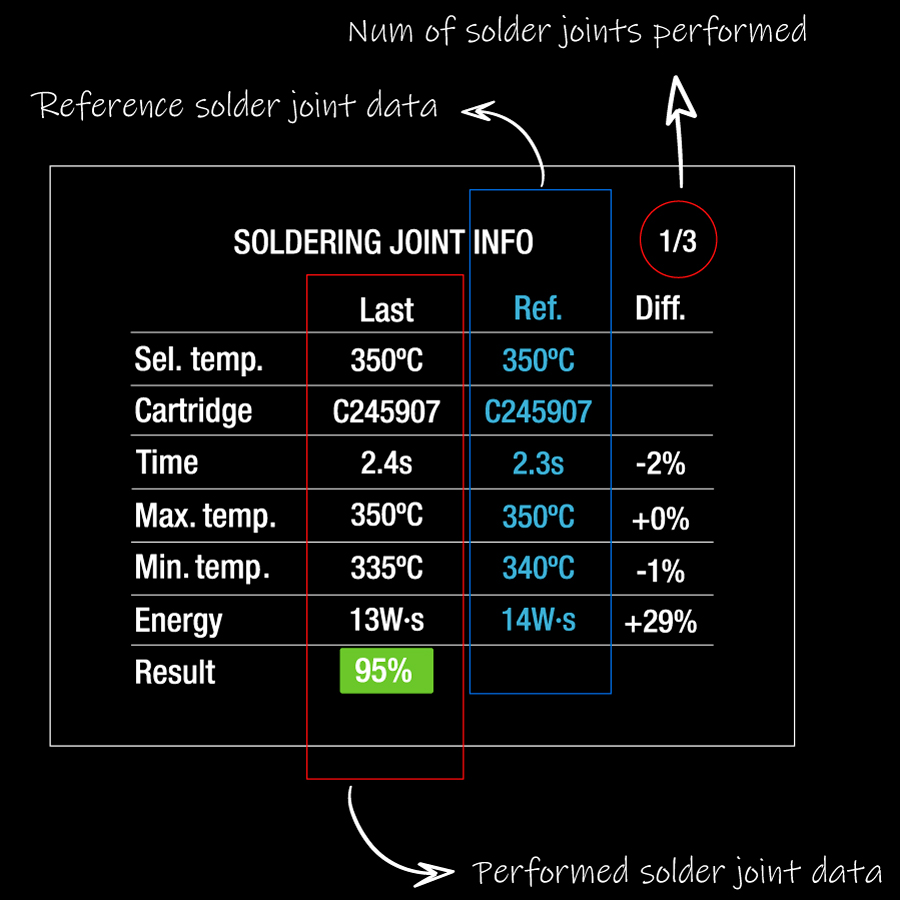

Perform soldering joints and the station will compare them with the pre-stored joint. Repeat until you achieve the desired results.

Benefits

Know the energy delivered to the soldering joint

Monitor the soldering process

Obtain information to optimize processes

Help operators with little experience

Stations with Soldering Assistant

CDES

Precision Soldering-Assistant
Station

CDEB

Soldering-Assistant
Station

Features

Tool	T210 Precision Handle	T245 General Purpose Handle
Compatible Cartridges	C210	C245
Job Type	Precision	General Purpose

Connection

Sleep & Hibernation Modes
Cartridge Holder
Cartridge Extractor
Pedal Connector
Connection Station-PC	USB-B	USB-B
Update Files	USB-A	USB-A
Peripherals	RJ12	RJ12
Soldering Assistant

Specification

Output Peak Power	40 W	130 W
Temperature Range	90 to 450 ºC / 190 to 840 ºF	90 to 450 ºC / 190 to 840 ºF
Ambient Operating Temperature	10 to 50 ºC / 50 to 122 º	10 to 50 ºC / 50 to 122 º
Idle Temp. Stability (still air)	±1.5ºC / ±3ºF	±1.5ºC / ±3ºF
Temp. Accuracy	±3%	±3%
Temp. Adjustment	±50ºC / ±90ºF	±50ºC / ±90ºF
Tip to Ground Voltage/Resistance:	Meets and exceed ANSI/ESD S20.20-2014, IPC J-STD-001F	Meets and exceed ANSI/ESD S20.20-2014, IPC J-STD-001F
Earthing Fuse	F 1.25A	F 1.25A

Improve your soldering quality in real time

Soldering Assistant helps to improve soldering abilities

The system compares the new solder joints with the prestored soldering reference. The operator receives feedback from the station indicated by a colour with a percentage to qualify the process:

Soldering Assistant makes this station perfect for operators with little experience.

* Percentage is configurable

Monitor

Soldering Assistant allows analyzing manual soldering processes and obtaining a qualification of these by comparing the soldering joints one by one.

Mesures energy in real time

The station identifies when a soldering joint is performed, records the power delivered in each instant and measures the energy supplied.

Energy of the soldering process

The measurement of the energy delivered by the soldering process and the time needed to do so, is what allows the station to indicate whether two soldering joints are equal or not.

How do we achieve a quality solder joint?

Configuration

A renewed user menu allows the user to easily set up the station parameters.

Set the proper soldering configuration to obtain the best quality soldering in just a few steps and activate Soldering Assistant.

Choose cartridge

Soldering Assistant compares the power delivery between two equal soldering joints performed with different tip geometries.

This allows the user to select the most optimal cartridge for each soldering process is.

Perform soldering reference

To obtain a high-quality soldering reference, it is recommendable that an expert performs and verifies the soldering process.

Practice

Perform soldering joints and the station will compare them with the pre-stored joint. Repeat until you achieve the desired results.

Benefits

Know the energy delivered to the soldering joint

Monitor the soldering process

Obtain information to optimize processes

Help operators with little experience

Stations with Soldering Assistant

CDES

Precision Soldering-Assistant Station

CDEB

Soldering-AssistantStation

Features

Connection

Specification
