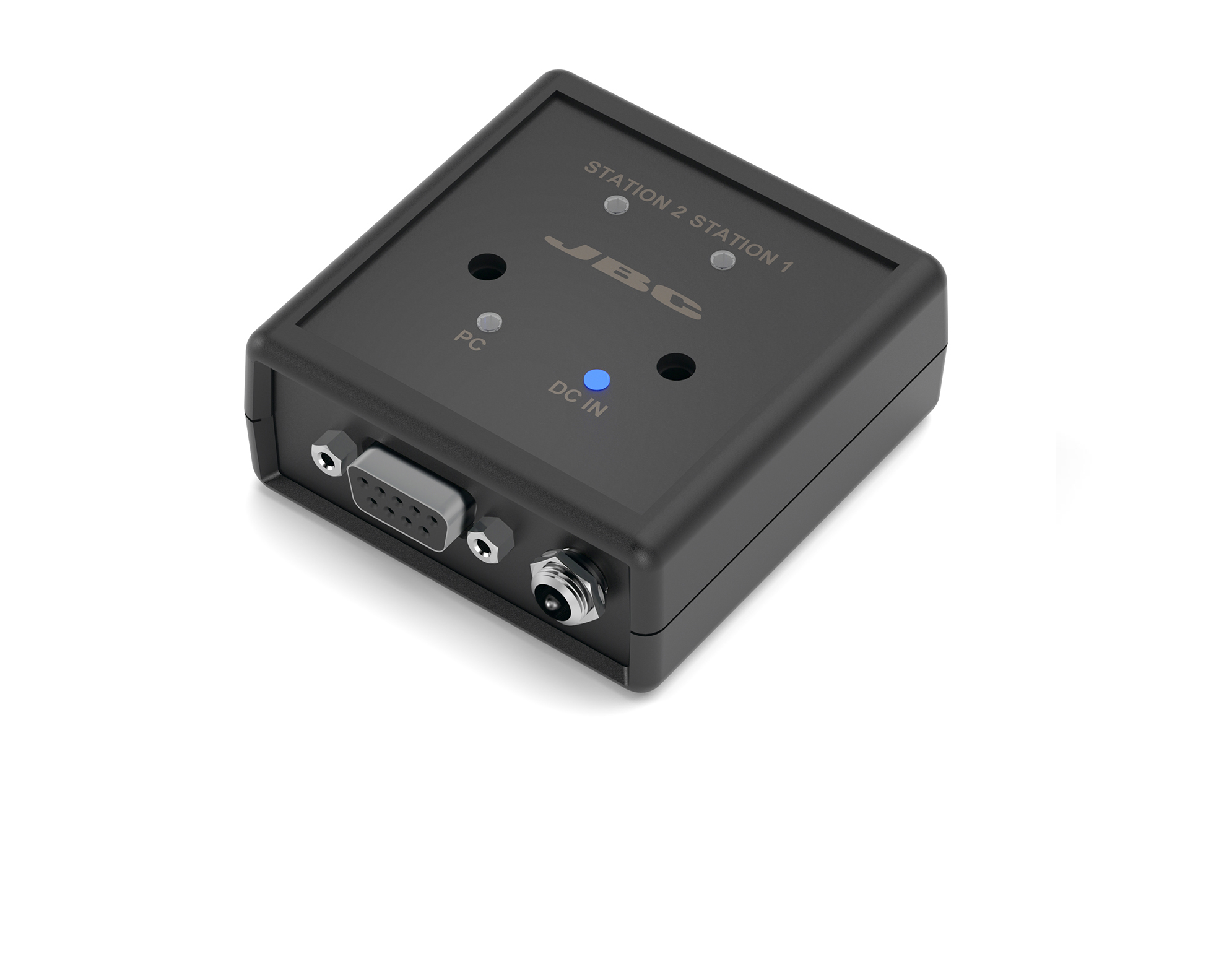

SMR-A
Serial Multiplexer

The Serial Multiplexer (SMR) simplifies the connection between the PC or PLC and the JBC stations by multiplexing one serial communication port towards two JBC Devices.

UCR: Control Unit for Automation (serial communication RS-232*)

SFR-B: Solder Feeder for Automation (serial communication RS-232*)

*See corresponding “Communication Protocol” at www.jbctools.com/jbcsoftware.html.
SMR-A - Serial Multiplexer
1
SMR-A Serial Multiplexer
Dimensions
66 x 66 x 28 mm /224 gr
2.59 x 2.59 x 1.10 in / 0.49 lb
Package dimensions
342 x 150 x 120mm / 95gr
13.4 x 5.90 x 4.72in / 0.20lb
Complies with CE standards
