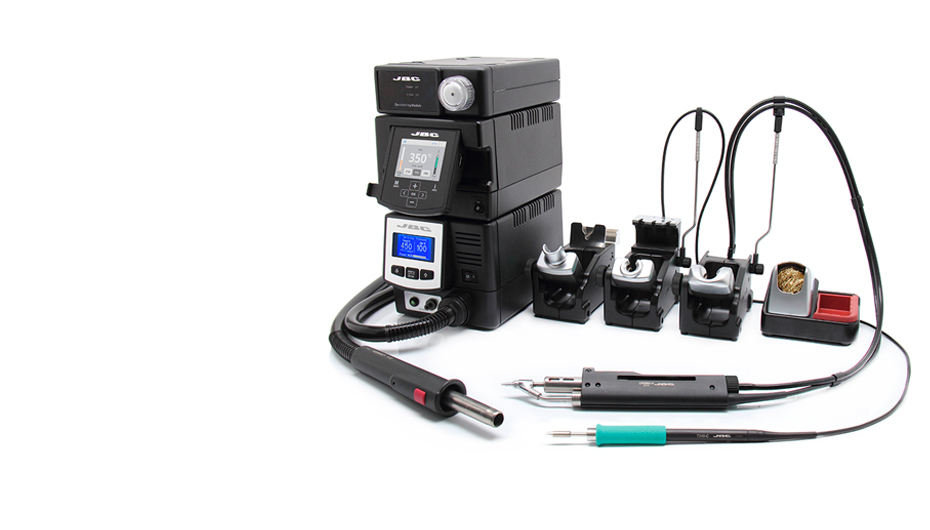

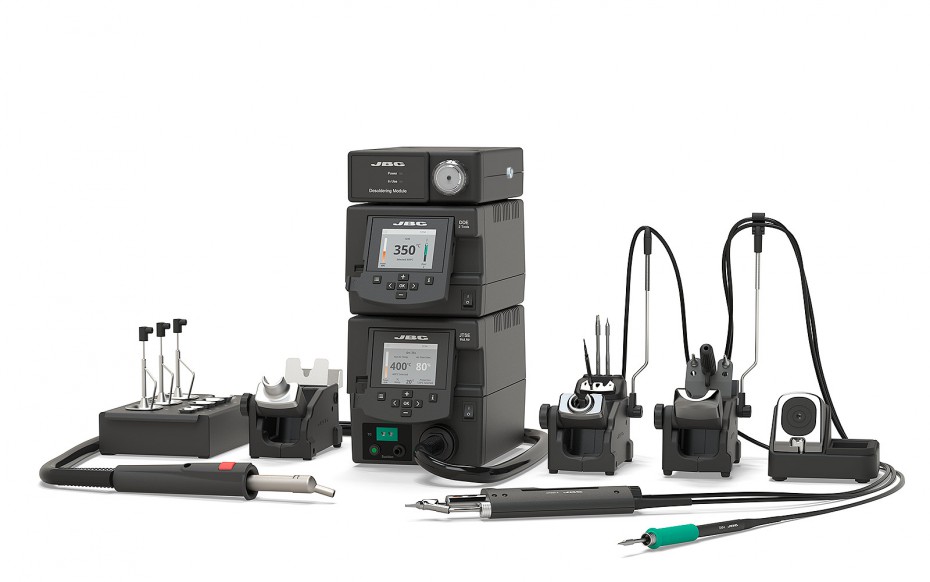

Complete Rework Station with Pneumatic Pump

RMVE anterior - Complete Rework Station with Pneumatic Pump
The quickest and safest solution for soldering and rework, also using Hot Air. It consists of stackable modules and all the necessary accessories to make your job easier.

The RMVE features all the Excellence range benefits. It works with the JBC exclusive Heating System and the intelligent sleep & hibernation modes.

The DDE manages up to 2 tools simultaneously and is fully compatible with 10 different JBC tools. Check below the complete list of compatible tools.

The MVE Pneumatic Desoldering Module is indispensable for a complete desoldering process.
Important: Clean and dry compressed air is required.

The JTSE Precision Hot Air Station controls the rework task using temperature and air flow profiles.

The RMSE works simultaneously with the DR560 Desoldering Iron, the T245 Handle and the JT-TA Heater Hose Set.
Net weight
14,04 kg (30.95lb)
120 V / 230 V / 100 V
Input fuse
DDE:4A/ 2A/ 5A JT:8A/ 4A/ 8A
Output peak power
DDE: 150 W per tool
Nominal power
JT: 700 W
Temperature selection
JT: 150-450ºC (300-840ºF) or Cool mode: Temp Off
DDE: 90-450 ºC (190-840 ºF)
Idle temp. stability (still air)
DDE: ± 1.5 ºC (± 3 ºF)
Ambient operating temp.
10-40 ºC (50-104 ºF)
Air flow regulation
JT: 10-50 SLPM
Flow rate
JT: 30% / 228 mmHg / 9 inHg
MSE:75%/570 mmHg/22.4 inHg
Rated current
JT: 6A/ 3A / 7A
Tip to ground resistance
DDE: <2 ohms
Tip to ground voltage
DDE: <2 mV RMS
Communication connectors
Robot connector
DDE: RJ12 for RS-232 protocol
Pedal conection
JT and MSE: P-005 Pedal
ESD safe
Package weight
15,86 kg (34.97lb)
Package dimensions
480 x 375 x 390 mm
18.90 x 14.76 x 15.35 in
