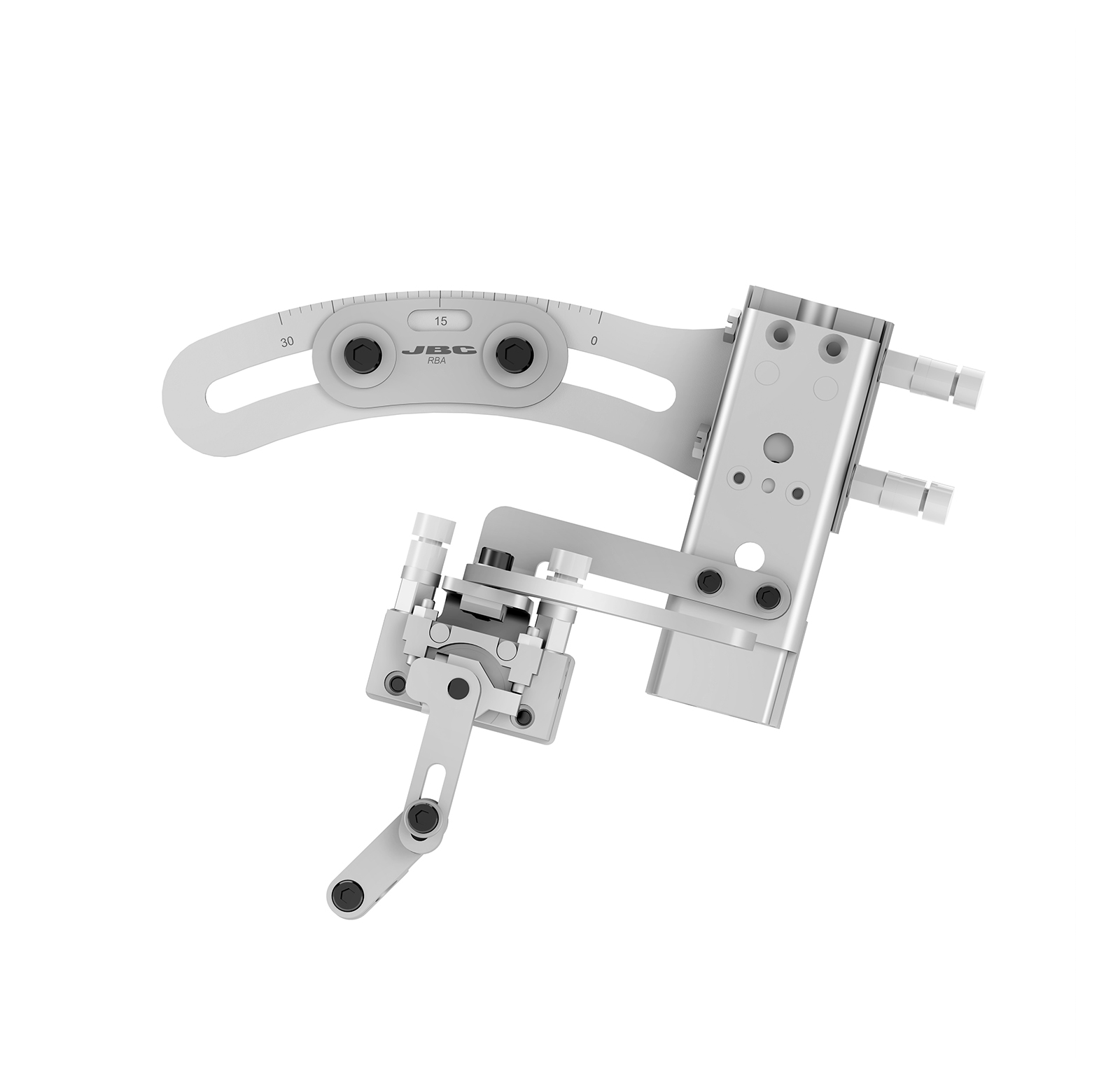

RBA
Soldering Head for Robot

RBA has been designed to be used in automated soldering processes.

It features a fast approaching movement system with buffer to prevent damaging the PCB by an excessive pressure during soldering process.

The Dispensing Nozzle Actuator allows dispensing tube rotation to facilitate tip cleaning with CLRP Automatic Tip Cleaner.

It can be assembled with:
RBA-A - Soldering Head for Robot
RBA-A
Special features
Tool compatibility
Pneumatic stroke
20mm (0.787 in)
Buffer stroke
5mm (0.197 in)
Operating pressure
1.5 to 7 bar (20 to 100 psi)
Applicable tubing diam.
4 mm (0.157 in)
Axis diameter for Head Assembly
18 mm (0.315 in)
Weight and dimensions
Selective Soldering
160 x 176 x 149 mm / 0.59 kg.
6.30 x 6.93 x 5.87 in / 1.30 lb.
Package
213 x 220 x 160 mm / 0.92 kg.
8.39 x 8.66 x 6.30 in / 2.02 lb.
Cartridge Range
Other Compatible Items
Supplied in
