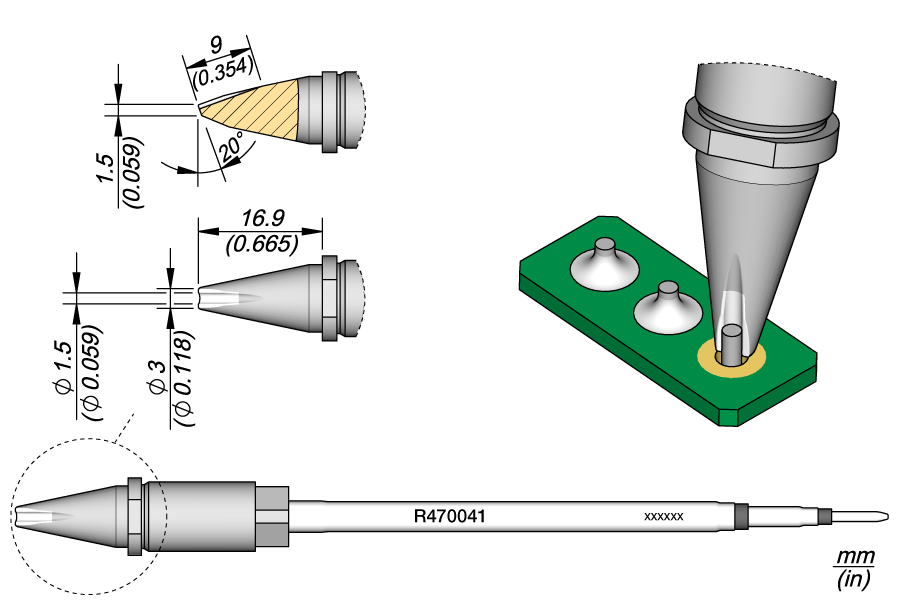

R470041Barrel Cartridge Ø 1.5

R470041
Barrel Cartridge Ø 1.5

This cartridge is designed for the use in Automated and Heavy-Duty Soldering Processes.

It is appropriate for connector soldering purposes and it is perfect for both THT and SMT cable soldering or for applications with high-power requirements such as ground plane soldering.

The new design features a square cross-section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.

R470041 fits TR470 Heavy Duty Soldering Tool and TRA470 Automatic Heavy Duty Soldering Tool.

JBC also offers the possibility to manufacture your special tip geometry. Do not hesitate to ask us on customtips@jbctools.com.
R470041 - Barrel Cartridge Ø 1.5
R470041
Net weight
0,02 kg (0.04lb)
Weight and dimensions
Package
183 x 60 x 34 mm / 0.03 kg.
7.20 x 2.36 x 1.34 in / 0.06 lb.
