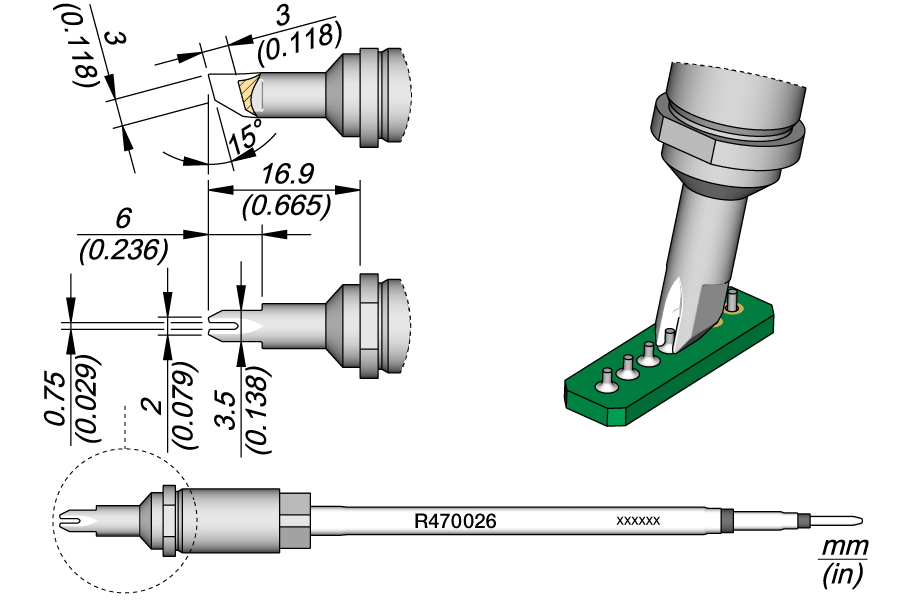

R470026Drag Cartridge 0.75

R470026
Drag Cartridge 0.75

This cartridge is designed for the use in Automated and Heavy-Duty Soldering Processes.

It is appropriate for Through-Hole drag soldering connectors or components, even with pins connected to ground planes.

The new design features a square cross-section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.

R470026 fits TR470 Soldering Iron and TRA470 Automatic Soldering Iron.

JBC also offers the possibility to manufacture your special tip geometry. Do not hesitate to ask us on customtips@jbctools.com.
If you require any further information, feel free to contact us
R470026 - Drag Cartridge 0.75
R470026
Net weight
0,02 kg (0.04lb)
Dimensions and weight
Package
183 x 60 x 34 mm / 0.03 kg.
7.20 x 2.36 x 1.34 in / 0.06 lb.
