R470023Chisel Cartridge 5 x 1.5

R470023

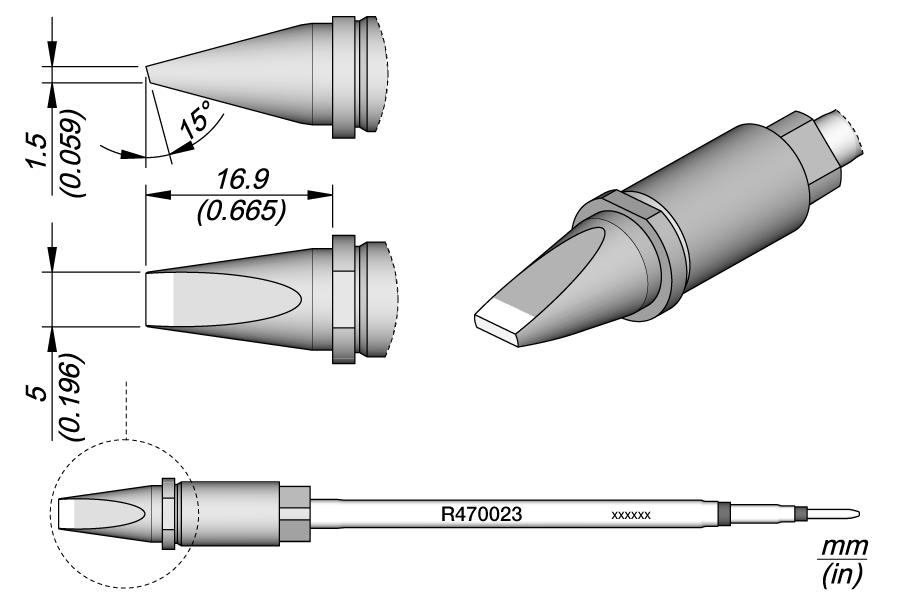

Chisel Cartridge 5 x 1.5

This cartridge is designed for the use in Automated Processes with high-power requirements.

The new design features a square cross-section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.

R470023 fits TR470 Heavy Duty Soldering Tool and TRA470 Automatic Heavy Duty Soldering Tool.

JBC also offers the possibility to manufacture your special tip geometry. Do not hesitate to ask us on customtips@jbctools.com.
R470023 - Chisel Cartridge 5 x 1.5
R470023
Net weight
0,02 kg (0.04lb)
Weight and dimensions
16 gr (0.04 lb)
26 gr (0.06 lb)
183 x 60 x 34 mm
