R245024Grooved Chisel Cartridge 2 x 0.8

R245024
Grooved Chisel Cartridge 2 x 0.8

This cartridge is designed for the use in Automated Soldering Processes.

The groove in the cartridge allows easy access of the dispensed tin to the solder joint.

The new design features a square cross-section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.

R245024 fits TR245 General Soldering Tool and TRA245 Automatic General Soldering Tool.

JBC also offers the possibility to manufacture your special tip geometry. Do not hesitate to ask us on customtips@jbctools.com.

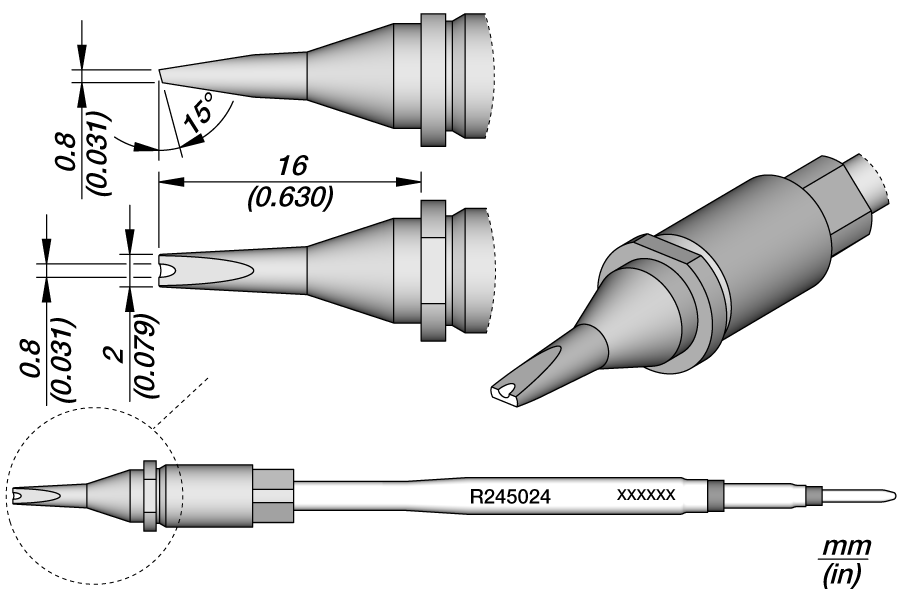

R245024 - Grooved Chisel Cartridge 2 x 0.8
R245024
Net weight
0,02 kg (0.04lb)
Weight and dimensions
16 gr (0.04 lb)
26 gr (0.06 lb)
183 x 60 x 34 mm
