R245013Drag Cartridge 1.25

R245013

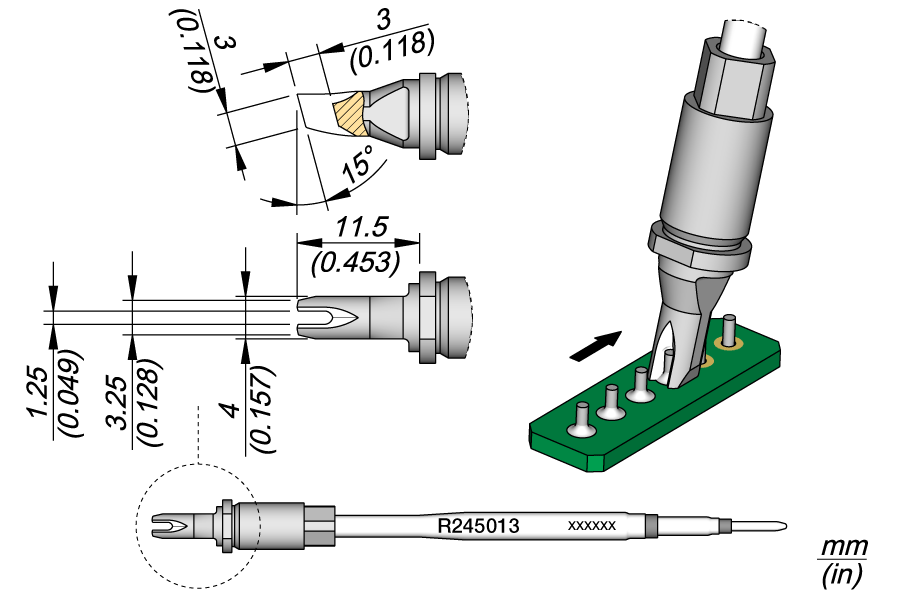

Drag Cartridge 1.25

This cartridge is designed for the use in Automated Soldering Processes.

It is appropriate for Through-Hole drag soldering connectors or components, even with pins connected to ground planes.

The new design features a square cross-section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.

R245013 fits TR245 Soldering Iron and TRA245 Automatic Soldering Iron.

JBC also offers the possibility to manufacture your special tip geometry. Do not hesitate to ask us on customtips@jbctools.com.
If you require any further information, feel free to contact us
R245013 - Drag Cartridge 1.25
R245013
Net weight
0,02 kg (0.04lb)
Dimensions and weight
Package
183 x 60 x 34 mm / 0.03 kg.
7.20 x 2.36 x 1.34 in / 0.06 lb.
