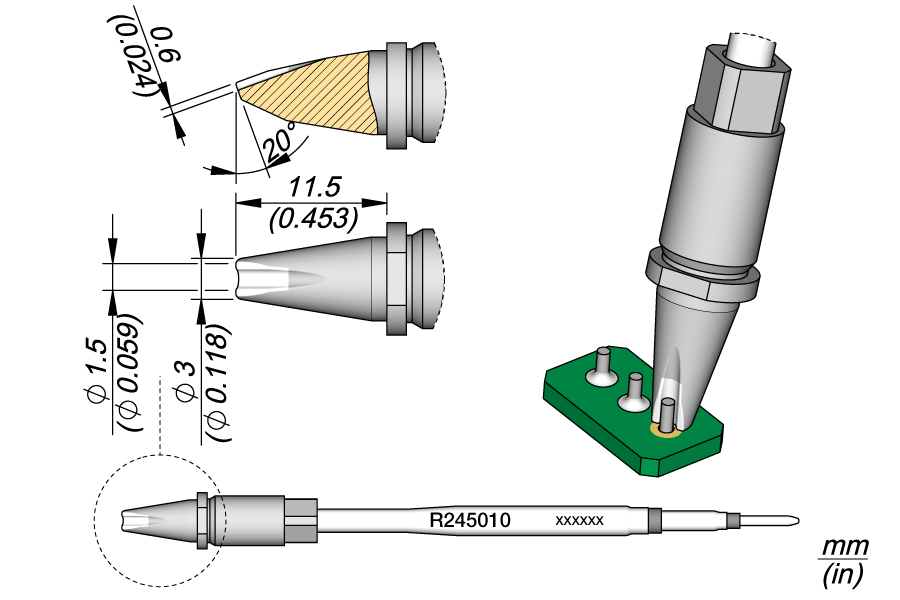

R245010Barrel Cartridge Ø 1.5

R245010
Barrel Cartridge Ø 1.5

This cartridge is designed for the use in Automated Soldering Processes.

It is appropriate for connector soldering purposes and it is perfect for both THT and SMT cable soldering or for applications with high-power requirements such as ground plane soldering.

The new design features a square cross-section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.

R245010 fits TR245 Soldering Iron and TRA245 Automatic Soldering Iron.

JBC also offers the possibility to manufacture your special tip geometry. Do not hesitate to ask us on customtips@jbctools.com.
If you require any further information, feel free to contact us
R245010 - Barrel Cartridge Ø 1.5
R245010
Net weight
0,02 kg (0.04lb)
Dimensions and weight
Package
183 x 60 x 34 mm / 0.03 kg.
7.20 x 2.36 x 1.34 in / 0.06 lb.
