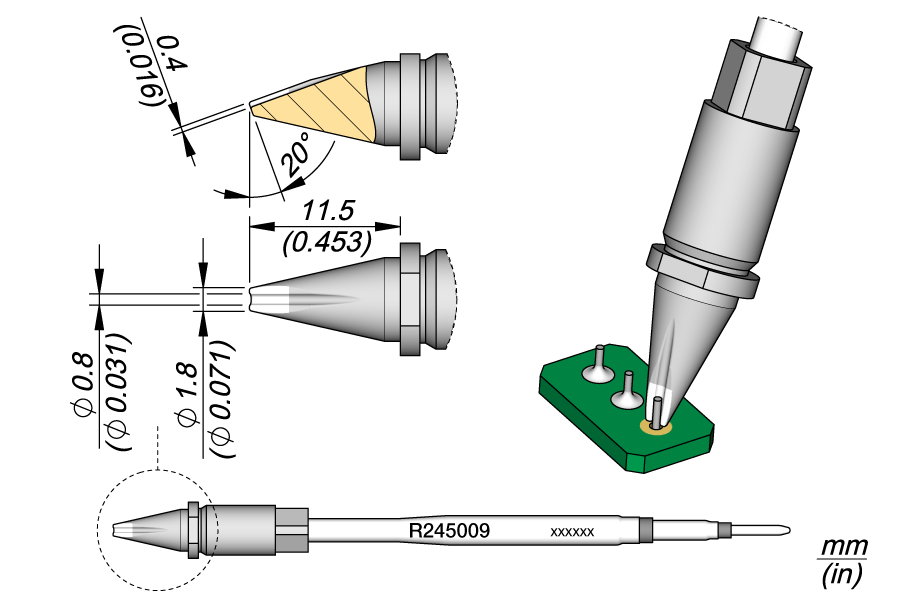

R245009Cartridge Pin-Connector Ø0.8

R245009
Cartridge Pin-Connector Ø0.8

These cartridges are designed for the use in Automated Soldering Processes.

The new cartridge design includes a square cross-section that centers the cartridge perfectly into the Soldering Irons and guarantees precise vertical positioning.

Due to this square cross-section, the cartridge can be used in 4 different positions, which can be changed in 90º steps.

They are appropriate for connectors soldering purposes and they are perfect for both THT and SMT cable soldering or for applications with high power requirements such as ground plane soldering.

Cartridges range R245 are available in different shapes and sizes and have the same benefits as all the others cartridge ranges.

These cartridges fit to the Soldering Irons TR245 and TRA245.

JBC also offers the possibility to manufacture your special tip geometry. Do not hesitate to ask for on customtips@jbctools.com
R245009 - Cartridge Pin-Connector Ø0.8
R245009
Net weight
0,02 kg (0.04lb)
Dimensions and weight
16 gr (0.04 lb)
26 gr (0.06 lb)
183 x 60 x 34 mm
