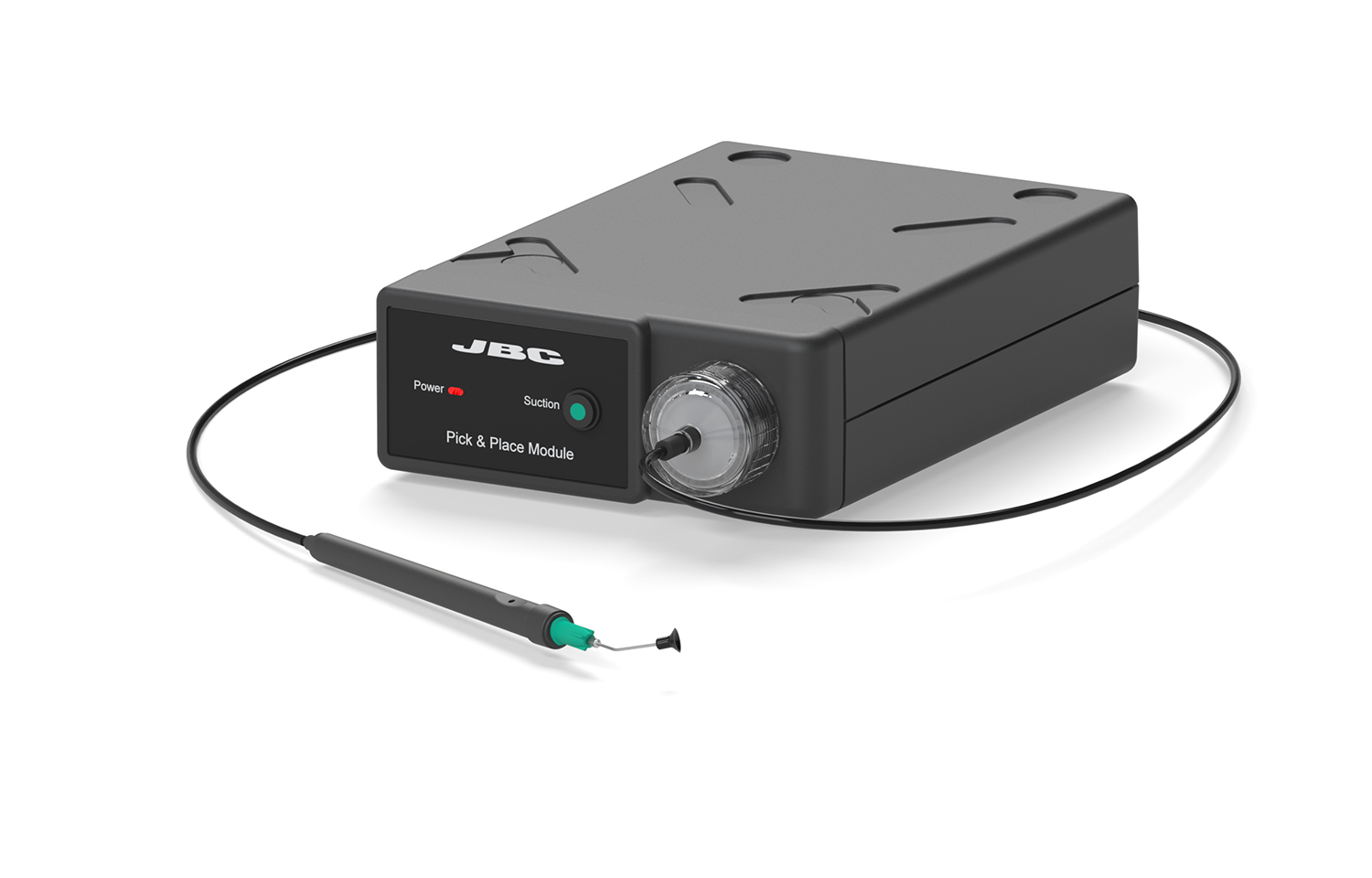

PK
Pick & Place Unit

Vacuum unit which allows easy positioning and removal of SMD components of different sizes.

It features 2 drive modes - a continuous mode for the removal of components with extractors/tripods and activation with pedal for precision work with the handpiece.

Various suction cup, needle, extractor and tripod sizes for ideal fitting for a wide range of components available.
PK - Pick & Place Unit
Vacuum
55% / 418mm Hg / 16,4 in Hg
Ambient operating temp.
10-50 ºC / 50-104 ºF
Pedal conection
Start/Stop function
ESD safe
AC adapter
Input: 100-240V, 50/60Hz
Output: DC 24V, 2A
Dimensions and weight
Dimensions
145 x 55 x 225 mm / 1.7 kg
5.71 x 2.17 x 8.86 in / 3.8 lb
