PH-2AInfrared Preheater

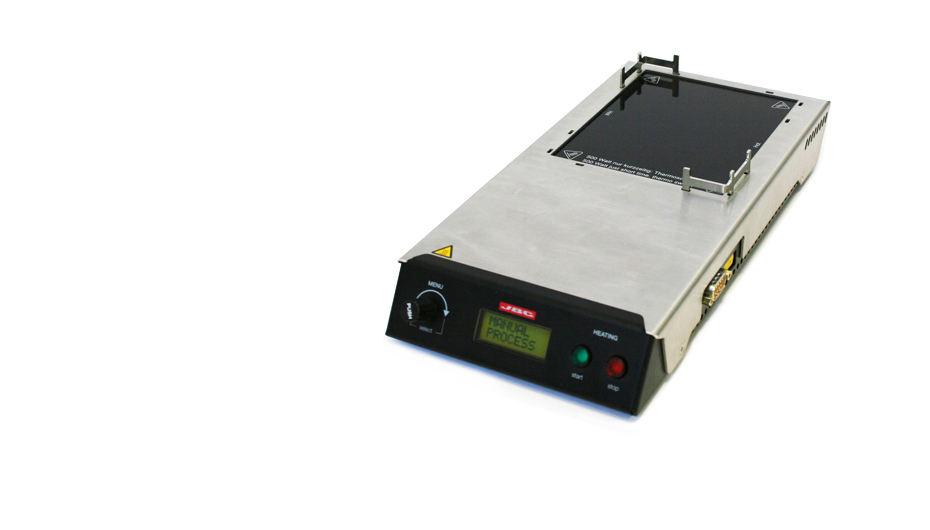

PH-2A - Infrared Preheater

PH-2A
Infrared Preheater

DISCONTINUED
PH-2A - Infrared Preheater
JBC preheater (PH) makes easier any soldering or desoldering job by applying infrared.

The heat projected below the PCB allows you to reduce the working time and the tool´s temperature.

The PH can be operated manually or automatically and it is possible to customize up to 99 different programs.

The PC connection enables to transfer the selected programs directly to the computer and conversely.
Don’t believe us...
TRY IT!
REFERENCE
PH-2A
PRODUCT COMPOSITION
SPECIFICATIONS
Net Weight1.9 kg (4.2 lb)
Dimensions:155 x 290 x 40 mm
Voltage:230V
Nominal Power:600VA
Heated Area:75 or 130 x 105 mm (2 zones)
Heating Power50 to 500 watt
Heating Rate3,5ºC/s
Temperature Rate50 to 170ºC
Temperature MeasurementK Thermocouple
Cooling rate0-10 min (external fan required)
Programsup to 99
Fuse4 A T and 0,160 A MT
Package weight2.8 kg (6.2 lb)
Package dimensions370x370x200 mm
