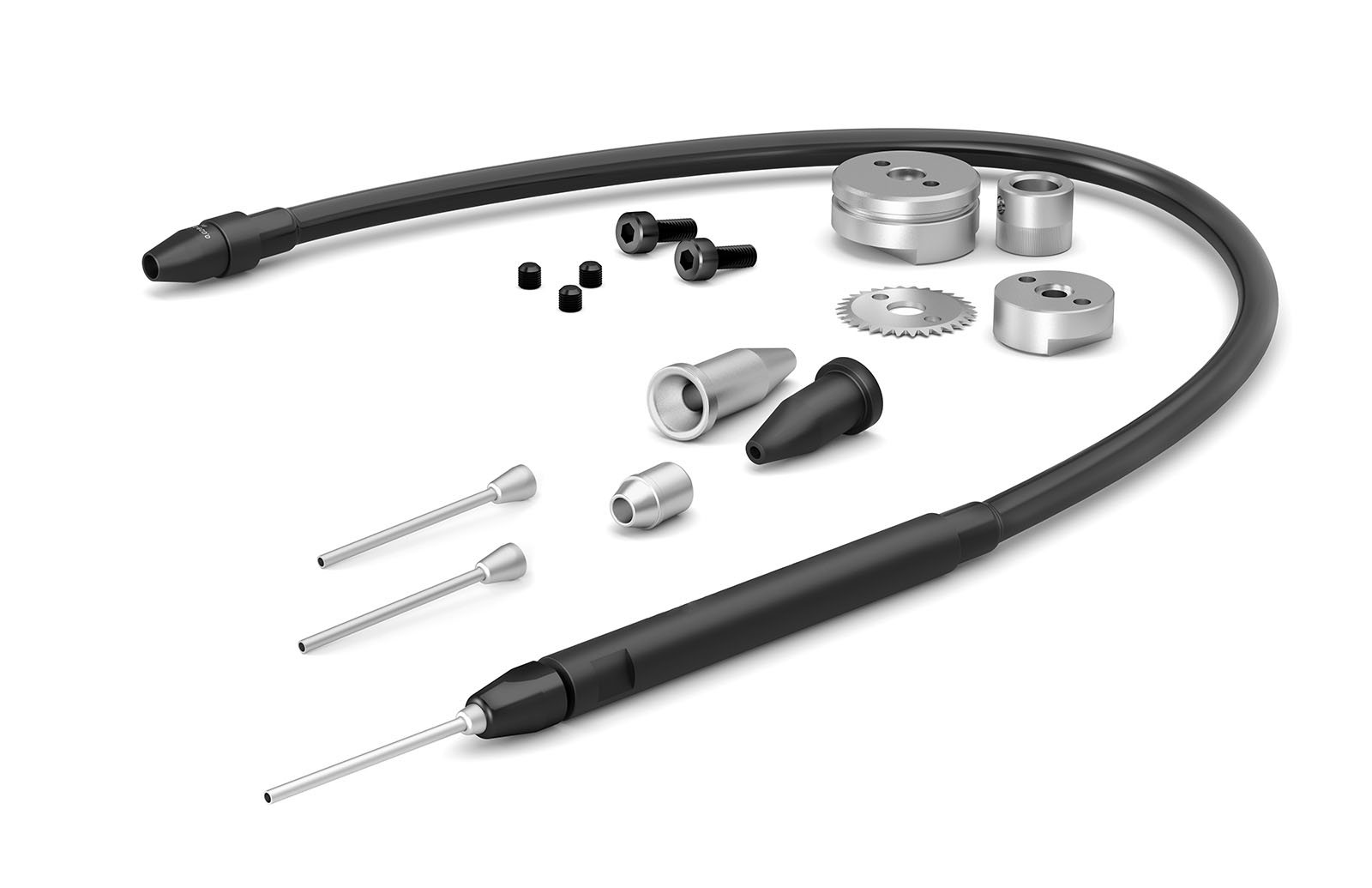

GSFR15V03-B
Guide Kit Ø 1.5 mm for SFR with perforation

With solder wire perforation. A small blade perforates the solder wire down to the flux core while feeding it. This perforation process allows better flux flow and outgassing avoiding solder and flux splashing during the soldering process.

It is compatible with solder wire diameter Ø 1.5 mm / Ø 0.059 in.

This Guide Kit suits for the SFR Solder Feeder and its easily exchangeable if different solder wire diameters are used.

Guide Kits are also available without solder wire perforation and for other wire diameters.

Different guide lengths are available if SFR is not fixed on the robot soldering head, check the manual for detailed information.
GSFR15V03-B - Guide Kit Ø 1.5 mm for SFR with perforation
GSFR15V03-B
1
GSFR15V03-B Guide Kit Ø 1.5 mm for SFR with perforation
Length
30 cm / 11.81 in
Net weight
0,04 kg (0.09lb)
Weight and dimensions
Package
245 x 185 x 45 mm / 0.12 kg.
9.65 x 7.28 x 1.77 in / 0.26 lb.
