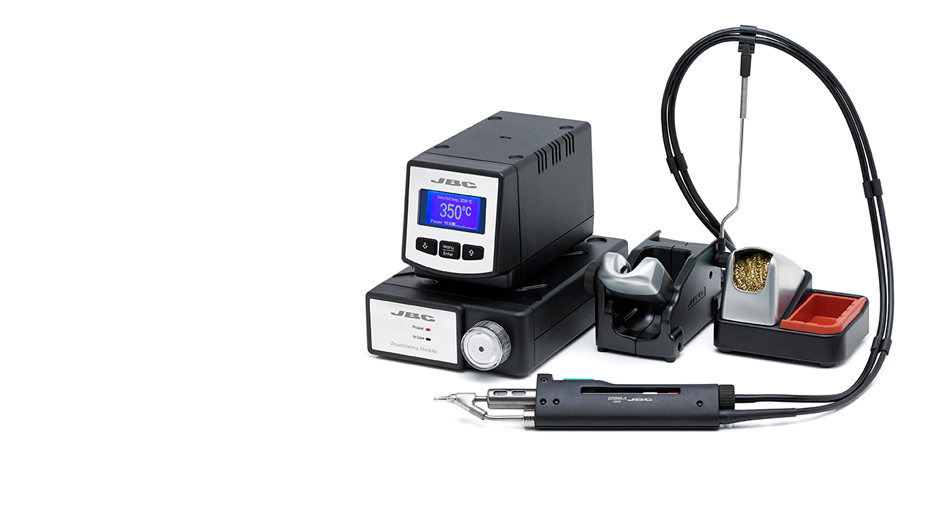

DIS-1BDesoldering station with electric suction module

Desoldering station with electric suction module

DIS-1B - Desoldering station with electric suction module
DIS station is designed for desoldering insertion components and for cleaning circuits with SMD components.

It is provided by a DI control unit and a MS electric suction module that creates a vacuum peak at the startup.

It incorporates the JBC exclusive heating system, even the intelligent sleep and the hibernation feature.

Through the menu you can customize more than 20 functionalities.

Although DI is able to work with any of JBC tools, DIS station works with DR560 desoldering iron.
Net Weight5.9 kg (13 lb)
SizeSee individual modules
Input Fuse2A
Output Peak Power130W
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Vacuum75% / 570mmHg / 22.4inHg
Flow rate9 SLPM
Package weight6.7 kg (14.9 lb)
Package dimensions370x370x200 mm
