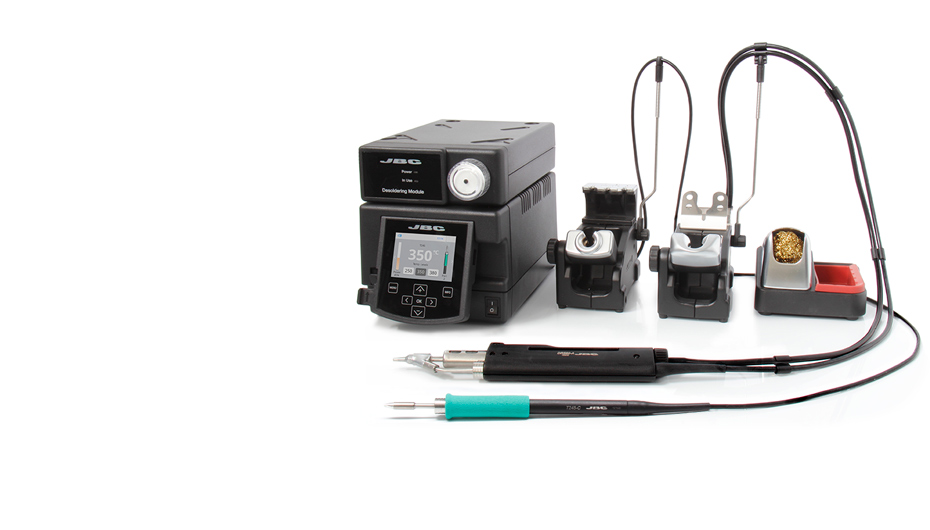

DDVE-9A
Rework station with Pneumatic Pump

DISCONTINUED
A complete solution for fast and safe PCB repair.

The DDE 2 Tools Control Unit manages the tip
temperature and the MVE Pneumatic Desoldering Module sucks the solder. It is required available compressed air at the operator´s bench.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.

Although the unit is compatible with any JBC tool, the DDSE works simultaneously with the DR560 Desoldering Iron and the T245 Handle.
Net Weight9.1 kg (20 lb)
DimensionsSee individual modules
Voltage(AC)100V
Input fuse5A
Output peak power150W per tool
Temperature selection90-450 ºC (190-840 ºF)
Idle temp. stability (still air)±1.5 ºC (±3 ºF)
Tip to ground resistance<2 ohms
Tip to ground voltage<2 mV RMS
Ambient operating temp.10-40 ºC (50-104 ºF)
Communication connectorsUSB-A / USB-B / Peripherals
Robot connectorRJ12 for RS-232 protocol
Vacuum at 6 Bar (MVE-A)90% / 680mmHg / 26.8inHg
Flow rate (MVE-A)15 SLPM
Air pressure (MVE-A)4-6 Bar
ESD safe
Package weight9.6 kg (21.2 lb)
Package dimensions475 x 370 x 195 mm
