A complete solution for fast and safe PCB repair.
The DDE manages up to 2 tools simultaneously and is fully compatible with 10 different JBC tools. Check below the complete list of compatible tools.
The MVE Pneumatic Desoldering Module is indispensable for a complete desoldering process. Clean and dry compressed air is required.
It provides the best soldering quality thanks to JBC Most Efficient Soldering System and additionally Sleep & Hibernation modes help to extend life of tips.
It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.

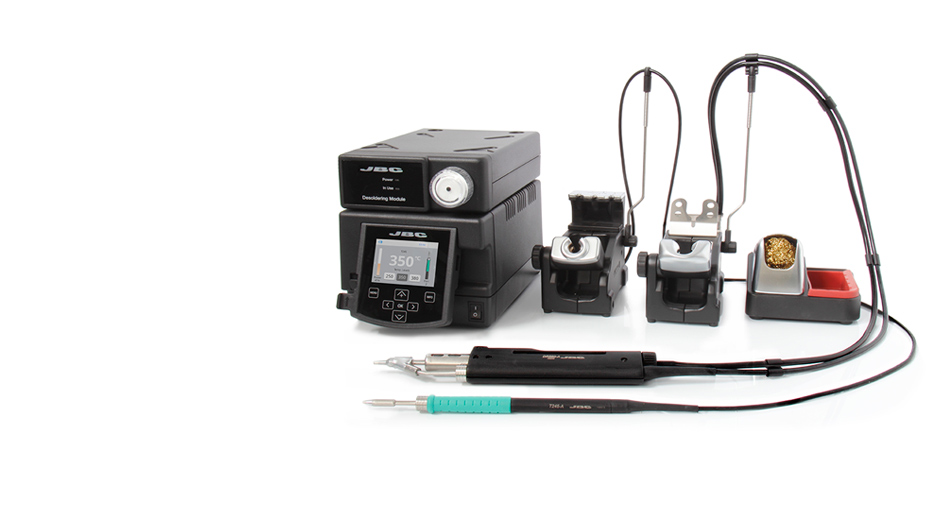

The DDVE works simultaneously with the DR560 Desoldering Iron and the T245 Handle.
The DDE manages up to 2 tools simultaneously and is fully compatible with 10 different JBC tools. Check below the complete list of compatible tools.
The MVE Pneumatic Desoldering Module is indispensable for a complete desoldering process. Clean and dry compressed air is required.
It provides the best soldering quality thanks to JBC Most Efficient Soldering System and additionally Sleep & Hibernation modes help to extend life of tips.
It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.
The DDVE works simultaneously with the DR560 Desoldering Iron and the T245 Handle.
PRODUCT COMPOSITION
SPECIFICATIONS
Selectable parameters
Selectable Temperature
90 to 450 ºC / 190 to 840 ºF
Special features
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max. and min. temperature
Limit the temperature range in which the operator is allowed to work.
Temperatue levels
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
Soldering graphics
Real time visualization of tip temperature and power delivered to the solder joint during soldering process.
PIN protection
Keep station parameters protected against unauthorized access.
Others
Vacuum
90% / 680 mmHg / 26.8 inHg
Flow rate
15 SLPM
Air pressure supply
up to 6 bar
Connectivity
USB-B (rear)
Software PC / Traceability
USB-A (front)
Firmware update Soldering Graphics management
Robot
RS-232 remote control or Smart Fume Extractor connection.
Equipotential bonding
ESD/EOS
ESD safe
Tip to ground resistance
<2 ohms
Tip to ground voltage
<2 mV RMS
Power supply
Peak power
150 W per tool – 23.5 V
Ambient operating temp.
10 to 40 ºC / 50 to 104 ºF
Dimensions and weight
Control Unit
See individual modules
Package
368 x 474 x 195 mm / 9.85 kg
14.5 x 18.7 x 7.7 in / 21.72 lb
