DDRE-1A
DDE-A Robot station

DISCONTINUED

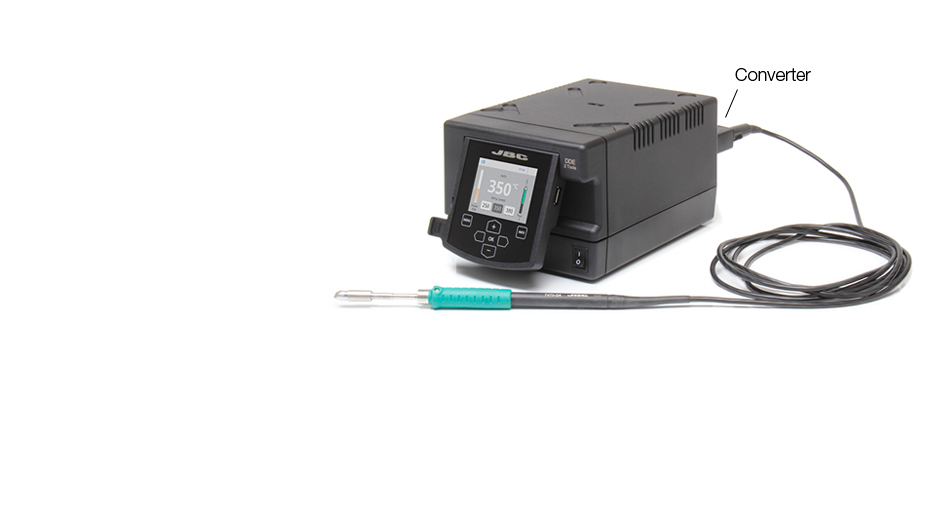

DDRE-1A - DDE-A Robot station
The ideal solution for repetitive jobs with robot.

It includes the DDE 2 Tools Contol Unit which communicates with the robot through the RJ12
connector and in accordance with this Protocol.

It also features the JBC exclusive heating system and the Excellence range benefits.

The converter guarantees the sleep & hibernation modes without using a stand.

The T470-SA Handle suits perfectly any robotic system thanks to its 3m cable and the screw
which prevents movement of the cartridge.

Cartridge not included.
Net Weight4.3 kg (9.3 lb)
Dimensions148 x 120 x 232 mm
Voltage(AC)120V
Input fuse4A
Output peak power150W per tool
Temperature selection90-450 ºC (190-840 ºF)
Idle temp. stability (still air)±1.5 ºC (±3 ºF)
Tip to ground resistance<2 ohms
Tip to ground voltage<2 mV RMS
Ambient operating temp.10-40 ºC (50-104 ºF)
Communication connectorsUSB-A / USB-B / Peripherals
Robot connectorRJ12 for RS-232 protocol
ESD safe
Package weight4.5 kg (9.9 lb)
Package dimensions280 x 205 x 210 mm
