CV-9DDesoldering station with Pneumatic Pump

CV-9D
Desoldering station with Pneumatic Pump

DISCONTINUED
CV-9D - Desoldering station with Pneumatic Pump

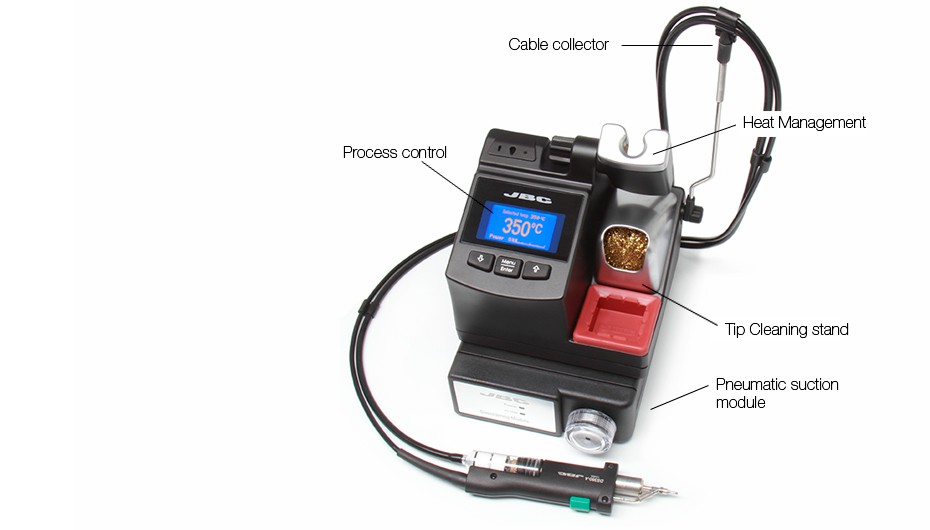

CV is a microdesoldering station using compressed air for precision electronic applications.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the process.

It incorporates a USB connector (type B) to update station software and create graphs.

Complete cleaning system with an antisplash membrane to keep the work area clean. Choose from 3 cleaning methods. Use the integrated wiper to remove excess solder from the tip.

CV works with the MV-A Pneumatic pump, the comfortable DS360 Microdesoldering Iron
and C360 cartridges.
Net Weight2.8 kg (6.2 lb) (station)
Size150x175x145 mm (station)
Voltage (AC)100V
Input Fuse2A
Output Peak Power40W / 23.5V
Temperature selection180-450 ºC / 356-840 ºF
Ambient operating temp.10-40 ºC / 50-104 ºF
Tip to ground resistance<2 ohms
Air pressure4 - 6 bar
Vacuum (at 6 Bar)90% / 680 mmHg / 26.8 inHg
Flow rate15 SLPM
USB connector station-PC
ESD Safe
Package weight4.7 kg (10.3 lb)
Package dimensions330x260x305 mm
