CV-9C
Desoldering station with Pneumatic Pump
CV-9C
Desoldering station with Pneumatic Pump
DISCONTINUED
Product Support
×
Manuals:
CS-CV Manual
(1.82 Mb)
DS360-A Manual
(1.5 Mb)
MV Pneumatic Desoldering Pump Manual
(1.81 Mb)
Exploded View:
Exploded View
(2.22 Mb)
Videos
×
Don’t believe us...
TRY IT!

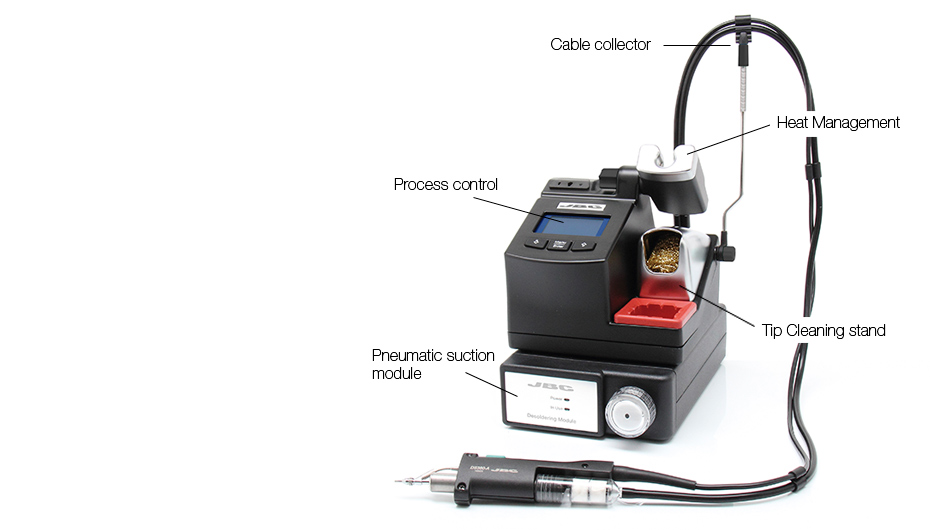

CV
is a microdesoldering station using compressed air for
precision electronic applications
.
It works with the
JBC exclusive heating system
and the intelligent
sleep & hibernation
features.
Using the
menu
you can personalize over 20 parameters to help manage the process.
It incorporates a
USB connector
(type B) to update station software and create graphs.
CV works with the
MV-A Pneumatic pump
, the comfortable
DS360 Microdesoldering Iron
and
C360 cartridges
.
REFERENCE
CV-9C
PRODUCT COMPOSITION
1
CV Control Unit
1
MV-A Pneumatic Desoldering Module
1
DS360 Micro Desoldering Iron
(C360004 already inserted)
1
C360004 Through-hole Desoldering Tip Ø 1.2
1
S0354 Sponge 36 x 69 mm
1
CL6210 Brass Wool
SPECIFICATIONS
Net weight
2.8 kg (6.2 lb) (station)
Size
150x175x145 mm (station)
0.59 x 0.67 x 5.71 in
Voltage
100V
Input fuse
2A
Output peak power
40W / 23.5V
Temperature selection
180-450 ºC / 356-840 ºF
Operating temp. range
10-40 ºC / 50-104 ºF
ESD safe
Air pressure
3 - 6 Bar
Vacuum
90% / 680mmHg / 26.8inHg
Flow rate
15 SLPM
USB interface station-PC
Package weight
4.700 kg (10.36 lb)
Package dimensions
330x260x305 mm
1.30 x 1.02 x 12.01 in
Cartridge Range
Other Compatible Items
C360 Range
MV - Pneumatic Desoldering Module for DIU
DS360 - Micro Desoldering Iron
CONNECTABLES
Modular System
MV-A
Pneumatic Desoldering Module for DI
Compatible tools
DS360-A
Micro Desoldering Iron
