CV-2CDesoldering station with Pneumatic Pump

CV-2C
Desoldering station with Pneumatic Pump

DISCONTINUED

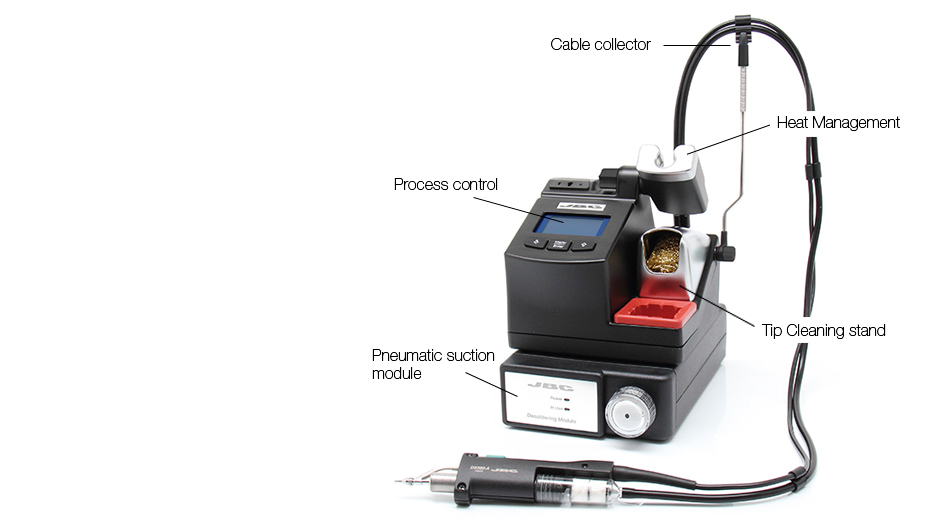

CV-2C - Desoldering station with Pneumatic Pump
CV is a microdesoldering station using compressed air for precision electronic applications.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the process.

It incorporates a USB connector (type B) to update station software and create graphs.

CV works with the MV-A Pneumatic pump, the comfortable DS360 Microdesoldering Iron
and C360 cartridges.
Net Weight2.8 kg (6.2 lb) (station)
Size150x175x145 mm (station)
Voltage(AC)230V
Input Fuse1A
Output Peak Power40W / 23.5V
Temperature selection180-450 ºC / 356-840 ºF
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
Air pressure3 - 6 Bar
Vacuum90% / 680mmHg / 26.8inHg
Flow rate15 SLPM
USB interface station-PC
Package weight4.7 kg (10.3 lb)
Package dimensions330x260x305 mm
