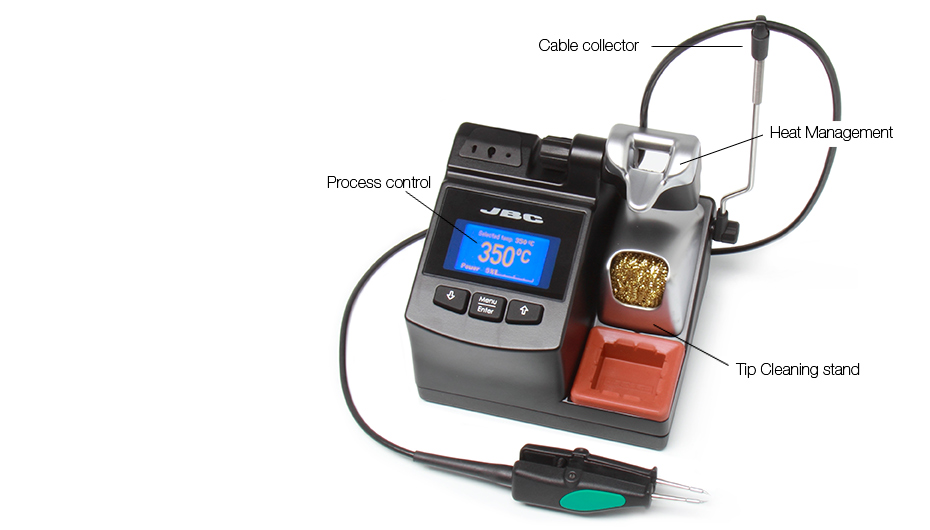

CP anterior
Micro Tweezers Station

The Station comes with the Adjustable Micro Tweezers AM120. This is the fastest way to remove SMD chip components and small/medium SOP from PCB assemblies.

The Tweezers are suitabel for C120 Cartridges.

The Station works with the JBC exclusive Heating System and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parametes.

It features a USB connector to update software, create graphs and manage parameters from a PC.

A complete Cleaning System with antisplash membrane and wiper with sponge is integrated.

CP anterior - Micro Tweezers Station
Selectable parameters
Selectable Temperature
90 to 450 ºC / 190 to 840 ºF
Special features
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max. and min. temperature
Limit the temperature range in which the operator is allowed to work.
Temperatue levels
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
PIN protection
Keep station parameters protected against unauthorized access.
Connectivity
USB-B
Software PC / Firmware update
Equipotential bonding
ESD/EOS
ESD safe
Tip to ground resistance
<2 ohms
Tip to ground voltage
<2 mV RMS
Power supply
Peak power
80 W - 23,5 V
Ambient operating temp.
10 to 40 ºC / 50 to 104 ºF
Dimensions and weight
Control Unit
150 x 175 x 145 mm / 2.70 kg
5.9 x 6.9 x 5.7 in / 5.96 lb
Package
234 x 234 x 258 mm / 3.15 kg
9.2 x 9.2 x 10.2 in / 6.94 lb




INTELLIGENT HEAT MANAGEMENT

The only time a soldering iron must reach its required
temperature level is during a soldering operation.
JBC’s intelligent heat management detects how the tools are used;
accordingly the integrated support function activates
the sleep or hibernation mode.

The intelligent heat management helps
to extend tip life by lowering temperature;
it also helps to save energy by reducing power usage
to 10W in sleep mode and 4W in hibernation mode.

Help us to protect the environment and to save energy!
