CDE Stations

CDE
The first Compact Station
with Soldering Assistant

CDE
The first Compact Station with Soldering Assistant

Soldering Assistant helps to improve soldering abilities

The system compares the new solder joints with the prestored soldering reference. The operator receives feedback from the station indicated by a color with a percentage to qualify the process:




0-60% *

61-100% *



Soldering Assistant makes this station perfect to improve the operator's soldering abilities.


* Percentage is configurable

Soldering Assistant helps to improve soldering abilities

The system compares the new solder joints with the prestored soldering reference. The operator receives feedback from the station indicated by a colour with a percentage to qualify the process:




0-60% *

61-100% *



Soldering Assistant makes this station perfect to improve the operator's soldering abilities.


* Percentage is configurable

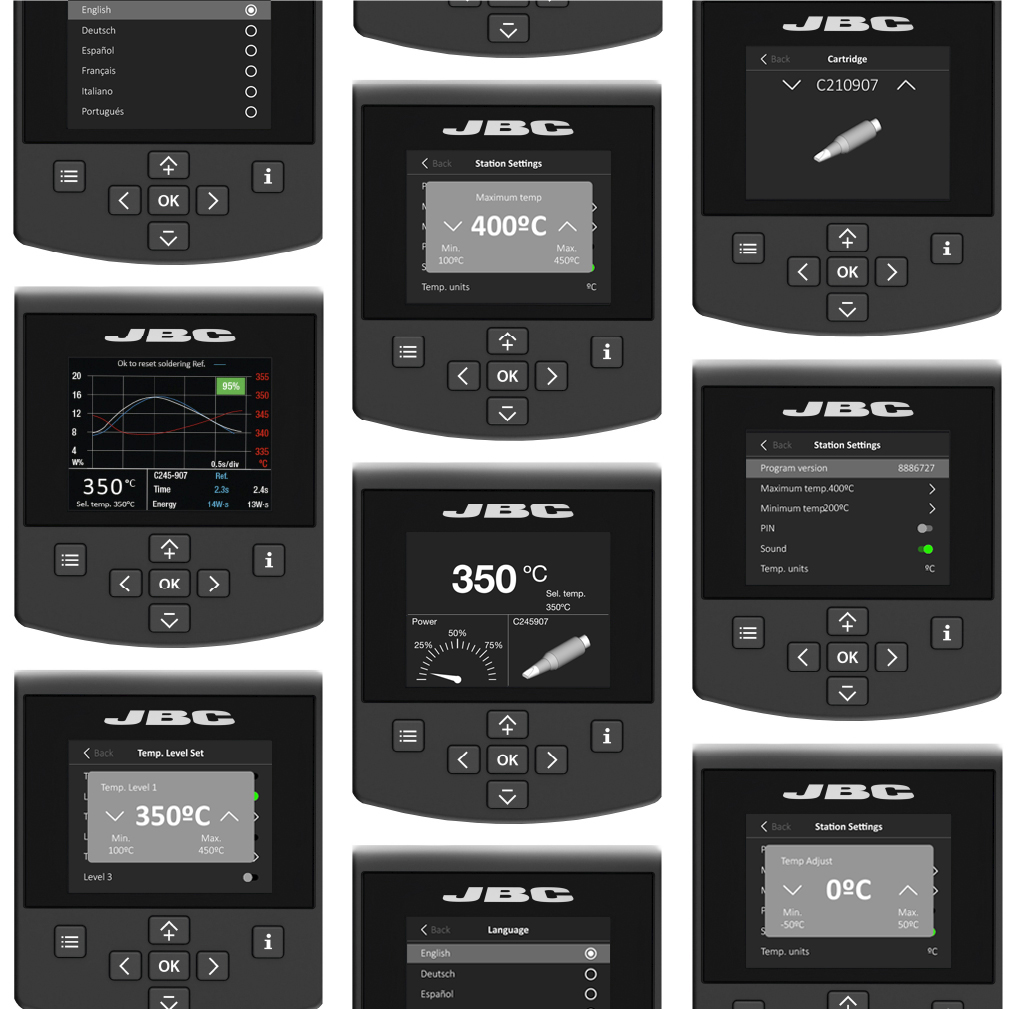

User-friendly menu




A renewed user menu allows the user to easily set up the station parameters.

It sets the suitable soldering configuration to obtain the best quality soldering in just a few steps.

User-friendly menu


A renewed user menu allows the user to easily set up the station parameters.

It sets the suitable soldering configuration to obtain the best quality soldering in just a few steps.

Connectivity




Peripherals, Fume Extractors and Pedals can be directly connected to CDE Station. Use JBC devices and accessories together with your CDE Station to achieve the best soldering results.

• FAE Fume extractors
• KNE-A Nitrogen kit
• Pedal
• Equipotential connection
• USB Connection

Connectivity


Peripherals, Fume Extractors and Pedals can be directly connected to CDE Station. Use JBC devices and accessories together with your CDE Station to achieve the best soldering results.

• FAE Fume extractors
• KNE-A Nitrogen kit
• Pedal
• Equipotential connection
• USB Connection

Communication



Connect your station to a computer using a USB cable and get the benefits that JBC NET Software/JBC Traceability System offers to control and trace your soldering production performance:





• Software updates
• Export graphics and soldering reference
• Web Manager
• JBC Traceability Software QST





• Software updates
• Export graphics and soldering reference
• Web Manager
• JBC Traceability Software QST

All-in-one solution




Save space on your workbench with the CDE that includes Control Unit, Tool, Stand, Cartridge Extractor, Cartridge Holder and Tip Cleaner in one compact device with the minimal footprint.

All-in-one solution


Save space on your workbench with the CDE that includes Control Unit, Tool, Stand, Cartridge Extractor, Cartridge Holder and Tip Cleaner in one compact device with the minimal footprint.

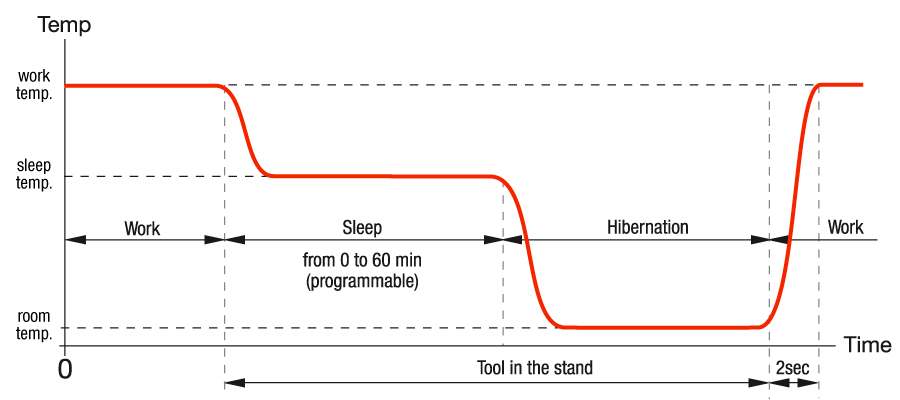

Most Efficient Soldering System



It provides the best soldering quality thanks to JBC Most Efficient Soldering System and additionally Sleep & Hibernation Modes help to extend life of tips.

Most Efficient Soldering System



It provides the best soldering quality thanks to JBC Most Efficient Soldering System and additionally Sleep & Hibernation Modes help to extend life of tips.

Soldering-Assistant Stations

CDES


Precision Soldering-Assistant
Station


CDE-B

CDEB


Soldering-Assistant
Station


Tool T210 Precision Handle T245 General Purpose Handle
Compatible Cartridges C210 C245
Job Type Precision General Purpose
Sleep & Hibernation Modes
Cartridge Holder
Cartridge Extractor
Pedal Connector
Connection Station-PC USB-B USB-B
Update Files USB-A USB-A
Peripherals RJ12 RJ12
Soldering Assistant
Output Peak Power 40 W 130 W
Temperature Range 90 to 450 ºC / 190 to 840 ºF 90 to 450 ºC / 190 to 840 ºF
Ambient Operating Temperature 10 to 50 ºC / 50 to 122 º 10 to 50 ºC / 50 to 122 º
Idle Temp. Stability (still air) ±1.5ºC / ±3ºF ±1.5ºC / ±3ºF
Temp. Accuracy ±3% ±3%
Temp. Adjustment ±50ºC / ±90ºF ±50ºC / ±90ºF
Tip to Ground Voltage/Resistance: Meets and exceed
ANSI/ESD S20.20-2014, IPC J-STD-001F
Meets and exceed
ANSI/ESD S20.20-2014, IPC J-STD-001F
Earthing Fuse F 1.25A F 1.25A
