CA-1E
Solder Feed station

CA-1E - Solder Feed station

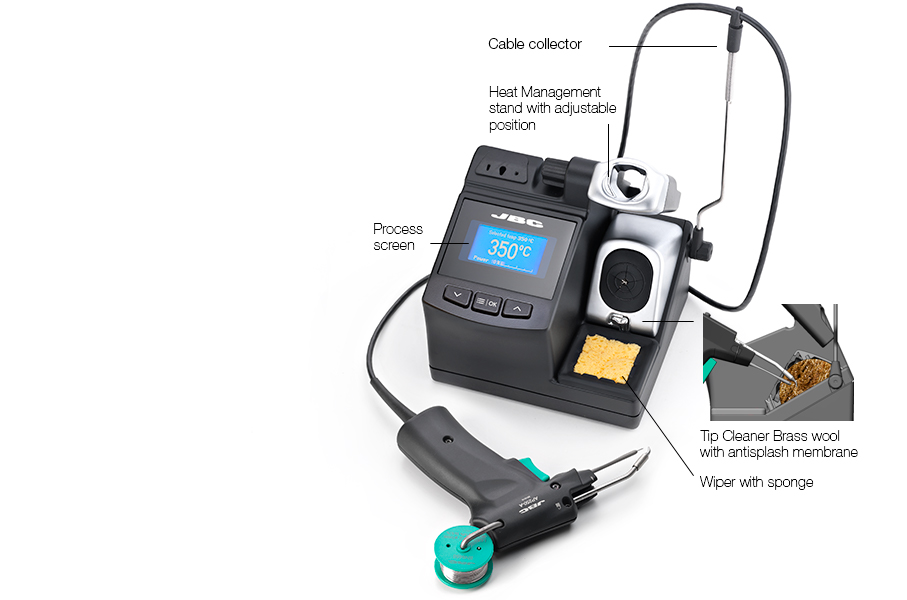

This Station comes with the Solder Feed Iron
AP250
and works with C250 Cartridges.

It suits for intensive soldering of THT components or for cable assemblies and is very useful when a free hand is required.

The Station comes with the JBC exclusive Heating System and the intelligent Sleep & Hibernation features.

Using the menu you can personalize over 20 parametes.

It incorporates a USB connector (type B) to update station software and create graphs.

A complete Cleaning System with antisplash membrane and wiper with sponge is integrated.

Net Weight2,86 kg (6.31lb)
Size150x175x145 mm
(5.91 x 6.89 x 5.71 in)
Voltage(AC)230V / 120V / 100V
Input Fuse1A (230V), 2A (120V and 100V)
Output Peak Power130W / 23.5V
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Tip to ground voltage<2mV RMS
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
Diameter of Solder Wire0.8-1.5 mm (0.03-0.06 in)
USB interface station-PC
Package weight3,28 kg (7.23lb)
Package dimensions2344 x 234 x 258 mm
(92.28 x 9.21 x 10.16 in)
Weight2.861 kg (6.31 lb)
