W14040G40G Cartridges Ø 0.08mm

W14040G
40G Cartridges Ø 0.08mm

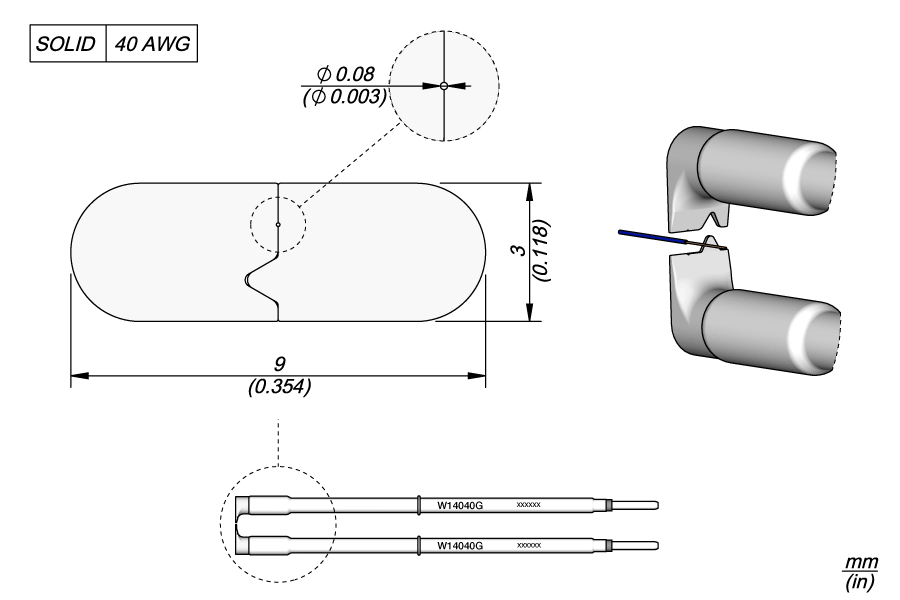

W14040G is specially designed for stripping high-temperature wire insulationsmade of thermostable materials such as Teflon*, Kapton*, silicone rubber, etc, of 40 AWG (Ø0.08 mm / Ø0.0031 in).

The self-centering design ensures a perfect tip alignment, allowing to remove the insulation without damaging conductors.

This cartridge works with WS140 Precision High-Temperature Wire Stripper Tweezers which has an adjustable strip length gauge to select the stripping length.

Both cartridges are included in this reference.

* Registered Trade Marks of DuPont
If you require any further information, feel free to contact us
W14040G - 40G Cartridges Ø 0.08mm
W14040G
Net weight
0,02 kg (0.05lb)
Dimensions and weight
Package
155 x 56 x 46 mm / 0.04 kg.
6.10 x 2.20 x 1.81 in / 0.08 lb.
