PHS Rework Adjustable Arm

RWS-A - PHS Rework Adjustable Arm

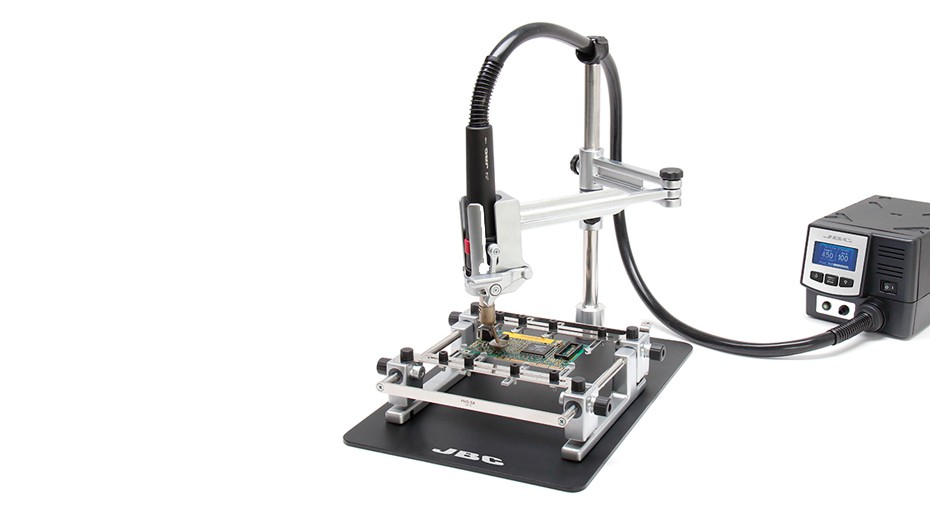

Especially designed for working with the PHS IR Preheater, it allows adjustment for different heights and positions depending on the operator’s needs.

This means it can cover the whole working area.
The arm can be placed in different positions, affording great flexibility when working on rework projects.

Vertical Movement
Thanks to the multiple arm joints the height of the arm can be adjusted to suit all components whatever their size.

Articulated arm
It provides full access to the whole work area by fixing the position of the arm joints using the tightening knobs.

Rotating clamp
This holds the hose away from the work area to keep it clear of obstacles.

Net Weight5,00 kg (11.02lb)
Size386,5 x 270 x 400 mm
(15.22 x 10.63 x 15.75 in)
Package weight6,00 kg (13.23lb)
Package dimensions595 x 520 x 180 mm
(23.43 x 20.47 x 7.09 in)

RWS-A Manual(2.3 Mb)

Rework Brochure(5.88 Mb)

Exploded View:
Exploded View(475 Kb)
