R470049Faston Terminal Cartridge 28.4 mm

R470049

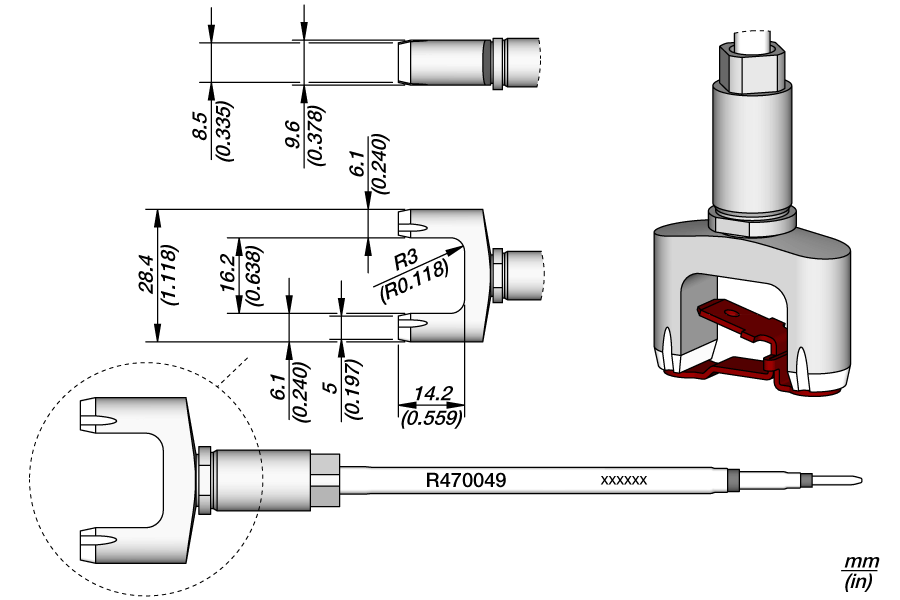

Faston Terminal Cartridge 28.4 mm

This cartridge is designed for the use in Automated Processes with high-power requirements.

It has a bridge at the tip for soldering two ends of a connector at a time (e.g. defoggers related to car glass). In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.

R470049 fits TR470 Heavy Duty Soldering Tool and TRA470 Automatic Heavy Duty Soldering Tool.

JBC also offers the possibility to manufacture your special tip geometry. Do not hesitate to ask us on customtips@jbctools.com.
R470049 - Faston Terminal Cartridge 28.4 mm
R470049
Net weight
0,02 kg (0.04lb)
Weight and dimensions
Package
183 x 60 x 34 mm / 0.03 kg.
7.20 x 2.36 x 1.34 in / 0.06 lb.
