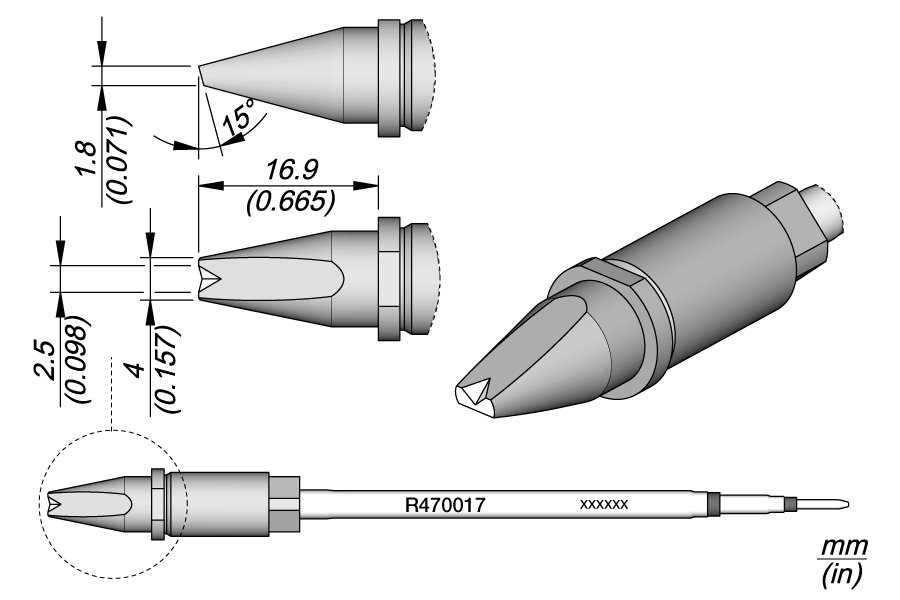

R470017Grooved Chisel Cartridge 4 x 1.8

R470017
Grooved Chisel Cartridge 4 x 1.8

This cartridge is designed for the use in Automated and Heavy-Duty Soldering Processes.

The groove in the cartridge allows easy access of the dispensed tin to the solder joint.

The new design features a square cross-section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.

R470017 fits TR470 Soldering Iron and TRA470 Automatic Soldering Iron.

JBC also offers the possibility to manufacture your special tip geometry. Do not hesitate to ask us on customtips@jbctools.com.
If you require any further information, feel free to contact us
R470017 - Grooved Chisel Cartridge 4 x 1.8
R470017
Net weight
0,02 kg (0.04lb)
Dimensions and weight
Package
183 x 60 x 34 mm / 0.03 kg.
7.20 x 2.36 x 1.34 in / 0.06 lb.
