DSS-1DMicro Desoldering station

DSS-1D
Micro Desoldering station

DISCONTINUED

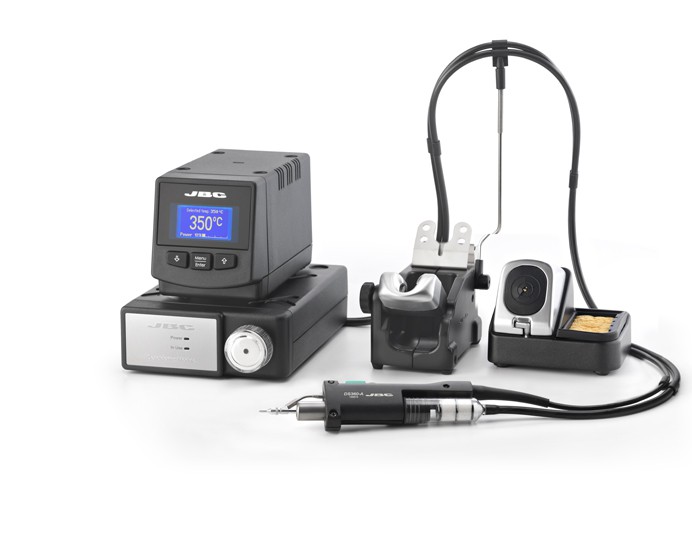

DSS-1D - Micro Desoldering station
This is the best solution for desoldering small and medium-sized insertion components.

The DI Control Unit and the MS Electric Suction Module guarantee a quick & safe desoldering process.

It works with the JBC JBC Most Efficient Soldering System and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The USB connector allows to update software, create graphs and manage parameters from a PC.

This station works with the DS360 Micro Desoldering Iron and C360 tips.

Net Weight5,82 kg (12.83lb)
SizeSee individual modules
Voltage(AC)120V
Input Fuse2A
Output Peak Power130W
Temperature selection90-450 ºC / 190-840 ºF
Tip to ground resistance<2 ohms
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Vacuum75% / 570mmHg / 22.4inHg
Flow rate9 SLPM
Package weight6,69 kg (14.75lb)
Package dimensions368 x 368 x 195 mm
(14.49 x 14.49 x 7.68 in)
