DISCONTINUED
DIV-2D

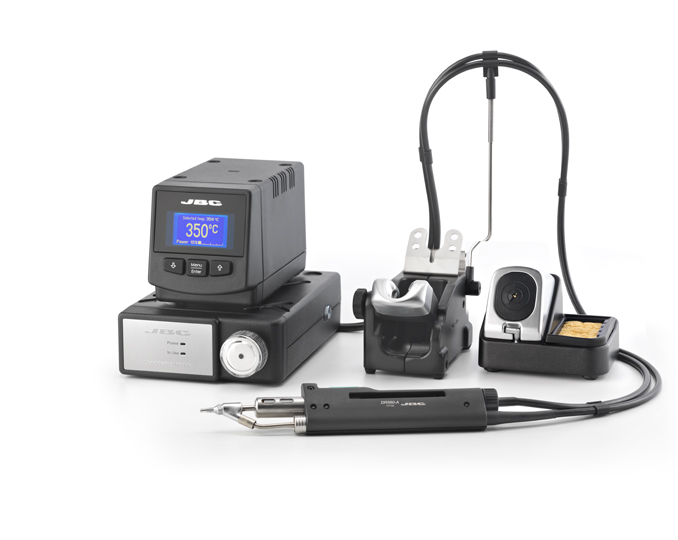

Desoldering station with pneumatic suction module
DIV-2D
Desoldering station with pneumatic suction module
This station allows you to desolder insertion components and to clean circuits with SMD.
The MV suction module offers the best results using a Venturi valve. This system requires available compressed air at the operator´s bench.
It works with the JBC Exclusive Heating System and the intelligent sleep & hibernation features.
Using the menu you can personalize over 20 parameters to help manage the soldering process.
The USB connector allows to update software, create graphs and manage parameters from a PC.
This station works with the comfortable DR560 Desoldering Iron and C560 tips.
The MV suction module offers the best results using a Venturi valve. This system requires available compressed air at the operator´s bench.
It works with the JBC Exclusive Heating System and the intelligent sleep & hibernation features.
Using the menu you can personalize over 20 parameters to help manage the soldering process.
The USB connector allows to update software, create graphs and manage parameters from a PC.
This station works with the comfortable DR560 Desoldering Iron and C560 tips.
| Net Weight | 5,72 kg (12.61lb) |
| Size | See individual modules |
| Voltage(AC) | 230V |
| Input Fuse | 1A |
| Output Peak Power | 130W / 23.5V |
| Temperature selection | 90-450 ºC / 190-840 ºF |
| Tip to ground resistance | <2 ohms |
| Tip to ground voltage | <2mV RMS |
| Ambient operating temp. | 10-40 ºC / 50-104 ºF |
| ESD Safe | |
| USB interface station-PC | |
| Air pressure | 3 - 6 Bar |
| Vacuum | 90% / 680mmHg / 26.8inHg |
| Flow rate | 15 SLPM |
| Package weight | 6,59 kg (14.53lb) |
| Package dimensions | 368 x 368 x 195 mm |
| (14.49 x 14.49 x 7.68 in) |
DI-D Manual(1.63 Mb)
MV Pneumatic Desoldering Pump Manual(1.47 Mb)
Stands Manual(2.23 Mb)
DR560-A Manual(1.77 Mb)
CL8499 ESD Tip Cleaner Manual(1.2 Mb)
